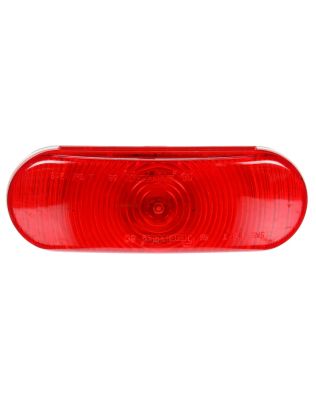

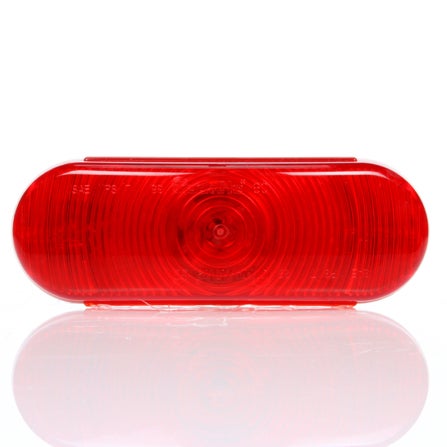

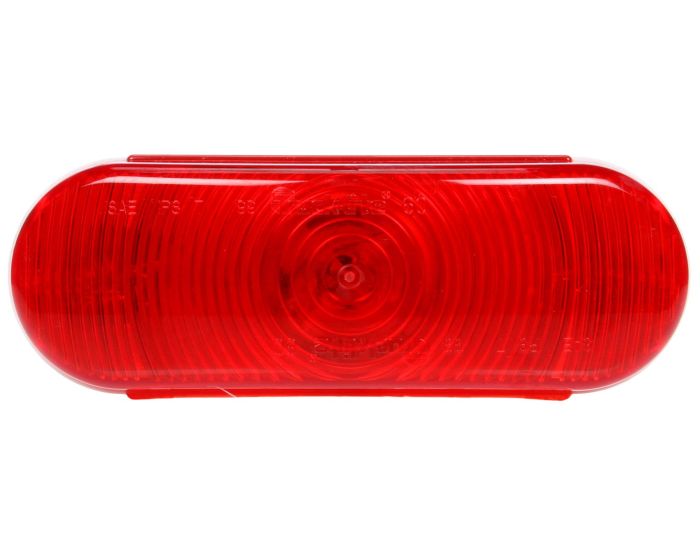

Super 60, Incandescent, Red, Oval, 1 Bulb, Stop/Turn/Tail, Black Grommet Mount, PL-3, Stripped End/Ring Terminal, 24V, Kit
60007R
Mounts horizontally or vertically|Right angle plug assembly
- PL-3
- Kit
- 24 V
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | Super 60, Incandescent, Red, Oval, 1 Bulb, Stop/Turn/Tail, Black Grommet Mount, PL-3, Stripped End/Ring Terminal, 24V, Kit |
|---|---|
| Brand | TL |
| Category | Stop/Turn/Tail |
| Series | 60 Series |
| Warranty | 2-Year |
| Compliance Family | FMVSS 108|CMVSS 108|DOT|SAE |
| Country of Origin | ZZ |
| Current Minor | .34 |
| Diamond Shell (Yes/No) | No |
| Features & Benefits | Mounts horizontally or vertically|Right angle plug assembly |
| Feature Highlights | PL-3|Kit|24 V |
| Itm Id | 2202132 |
| KIT (Yes/No) | Yes |
| Lens Shape | Oval |
| Lighting Technology | Incandescent |
| Lamp Connection | PL-3 |
| Lamp Connection (Simplified) | PL-3 |
| Lens Color | Red |
| Lens Height_INH | 2.25 |
| Lens Material | Polycarbonate |
| Lens Width_INH | 6.5 |
| Mount/Trim Color | Black |
| Mount/Trim Material | PVC |
| Mount Type | Grommet Kit |
| NAPA Part Number | 60007R |
| Number of Diodes/Bulbs | 1 |
| Number of Wires | 3 |
| Packaging Type | Standard |
| Part Number | 60007R4 |
| Plug Side One (Simplified) | PL-3 |
| Plug Side One | PL-3 |
| Plug Side Two | Stripped End|Ring Terminal |
| Reflectorized (Yes/No) | No |
| Sealed/Bulb Replaceable | Sealed |
| Standards Met | P2|S2|I6|T |
| Std Carton Qty | 1 |
| Taxonomy | Lights.Stop/Turn/Tail Lights |
| Total Depth_MMT | 63.5 |
| Total Depth | 2.5 |
| Temp. Description | Super 60 S/T/T Lamp Kit, 24 Vo |
| Total Height_MMT | 57.15 |
| Total Height | 2.25 |
| Total Length | .93 |
| Total Width_MMT | 165.1 |
| Total Width | 6.5 |
| UNSPSC/Tariff | 25172900 |
| UPC | 0735111021414 |
| VMRS | 034-002-013 |
| Voltage (VLT) | 24 |
| Weight | .56 |
