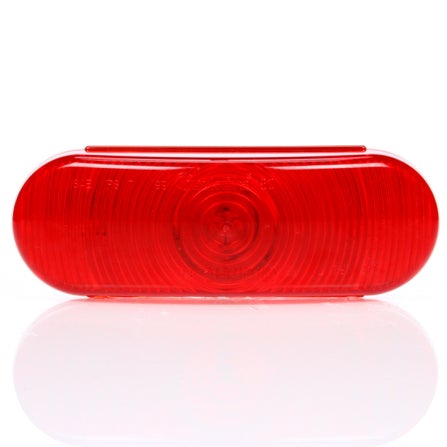

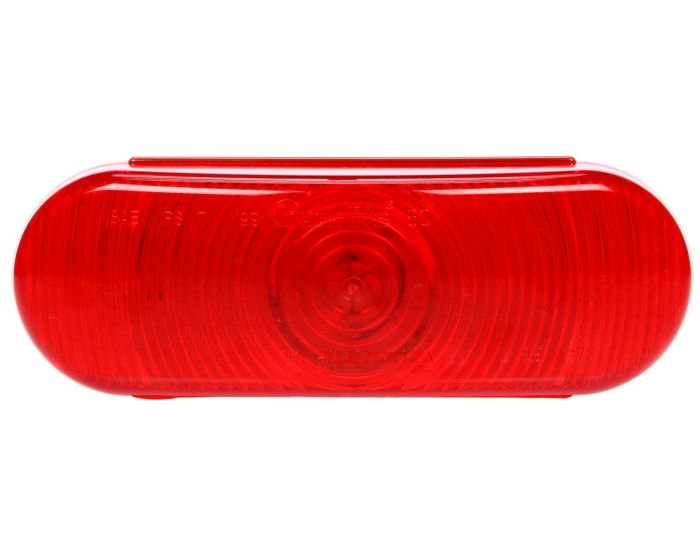

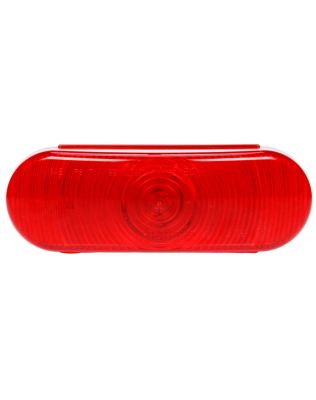

60 Series, Retrofit, Incandescent, Red, 1 Bulb, LLV High Mounted Stop Lights, Black Grommet Mount, PL-2, Packard Connector, 12V, Kit
60021R
Direct replacement for approved lamps on the United States Postal Service LLV (Long Life Vehicles)|Features a heavy duty shock mounted bulb|Four versions, each features center high mount stop functions, park and turn functions, rear side marker and turn functions, or front side marker and turn signal functions
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | 60 Series, Retrofit, Incandescent, Red, 1 Bulb, LLV High Mounted Stop Lights, Black Grommet Mount, PL-2, Packard Connector, 12V, Kit |
|---|---|
| Brand | TL |
| Category | LLV High Mounted Stop Lights |
| Series | 60 Series |
| Warranty | Lifetime |
| Common Root | 60021R |
| Country of Origin | ZZ |
| Current Minor | 1.22 |
| Diamond Shell (Yes/No) | No |
| Features & Benefits | Direct replacement for approved lamps on the United States Postal Service LLV (Long Life Vehicles)|Features a heavy duty shock mounted bulb|Four versions, each features center high mount stop functions, park and turn functions, rear side marker and turn functions, or front side marker and turn signal functions |
| Housing Material | Polycarbonate |
| Itm Id | 2202600 |
| KIT (Yes/No) | Yes |
| Lens Shape | Oval |
| Lighting Technology | Incandescent |
| Lamp Connection | PL-2 |
| Lens Color | Red |
| Lens Height_INH | 2.1 |
| Lens Material | Polycarbonate |
| Lens Width_INH | 6.46 |
| Mount/Trim Color | Black |
| Mount/Trim Material | PVC |
| Mount Type | Grommet Kit |
| NAPA Part Number | 60021R |
| Number of Diodes/Bulbs | 1 |
| Number of Wires | 2 |
| Packaging Type | Standard |
| Part Number | 60021R4 |
| Plug Side One (Simplified) | PL-2 |
| Plug Side One | Right Angle PL-2 |
| Plug Side Two | Packard Connector 12020398 |
| Reflectorized (Yes/No) | No |
| Sealed/Bulb Replaceable | Sealed |
| Std Carton Qty | 1 |
| Taxonomy | Lights.LLV |
| Total Depth_MMT | 37.85 |
| Total Depth | 1.49 |
| Temp. Description | LLV Mdl 60 CHMSL Lamp Kit |
| Total Height_MMT | 57.4 |
| Total Height | 2.26 |
| Total Length | 1.66 |
| Total Width_MMT | 165.1 |
| Total Width | 6.5 |
| UNSPSC/Tariff | 25172900 |
| UPC | 7.35111E+11 |
| VMRS | 034-003-097 |
| Voltage (VLT) | 12 |
| Weight | 0.7 |
