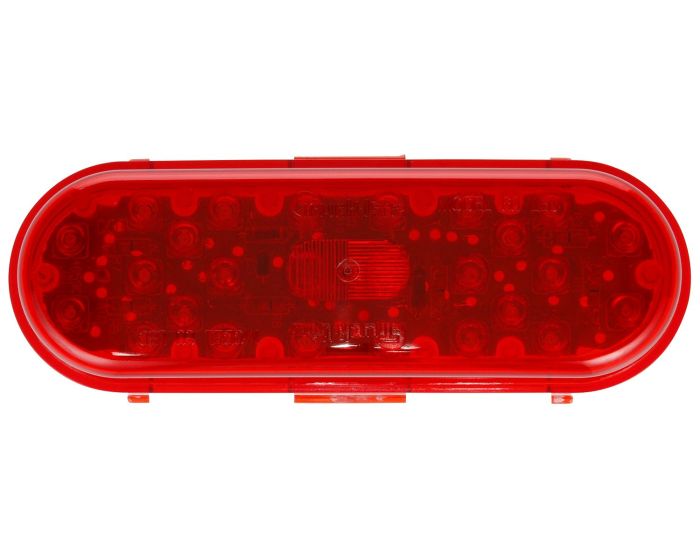

60 Series, LED, Red, Oval, 26 Diode, Stop/Turn/Tail, Black Grommet Mount, Fit 'N Forget S.S., Straight PL-3 Female, 12V, Kit, Bulk

60050R3

Faster illumination offers significant safety benefit for following drivers to react quicker, resulting in average 3' reaction time advantage for every 10 mph
  • PL-3
  • Fit 'N Forget S.S.
  • Kit
  • Bulk
  • 12 V
Need To Order By Phone?

(800) - 562 - 5012

Product Name 60 Series, LED, Red, Oval, 26 Diode, Stop/Turn/Tail, Black Grommet Mount, Fit 'N Forget S.S., Straight PL-3 Female, 12V, Kit, Bulk
Brand TL
Category Stop/Turn/Tail
Series 60 Series
Warranty Lifetime
Compliance Family FMVSS 108|CMVSS 108|DOT|SAE
Common Root 60050R
Country of Origin ZZ
Current Minor .04
Diamond Shell (Yes/No) No
Features & Benefits Faster illumination offers significant safety benefit for following drivers to react quicker, resulting in average 3' reaction time advantage for every 10 mph
Feature Highlights PL-3|Fit 'N Forget S.S.|Kit|Bulk|12 V
Itm Id 2203178
KIT (Yes/No) Yes
Lens Shape Oval
Lighting Technology LED
Lamp Connection Fit 'N Forget S.S.
Lens Color Red
Lens Height_INH 2.32
Lens Material Polycarbonate
Lens Width_INH 6.5
Mount/Trim Color Black
Mount/Trim Material PVC
Mount Type Grommet Kit
NAPA Part Number 60050R3
Number of Diodes/Bulbs 26
Number of Wires 3
Packaging Type Bulk
Part Number 60050R3
Plug Side One (Simplified) Fit 'N Forget S.S.
Plug Side One Fit 'N Forget S.S.
Plug Side Two Straight Female PL-3
Reflectorized (Yes/No) No
Sealed/Bulb Replaceable Sealed
Standards Met P2|I6|S2|T
Std Carton Qty 25
Taxonomy Lights.Stop/Turn/Tail Lights
Total Depth_MMT 41.15
Total Depth 1.62
Temp. Description LED Mdl 60 S/T/T Grommet Kit,
Total Height_MMT 58.93
Total Height 2.32
Total Length .34
Total Width_MMT 165.1
Total Width 6.5
UNSPSC/Tariff 25172900
UPC 0735111138198
VMRS 034-002-041
Voltage (VLT) 12
Weight 25.84
WARNING: This product can expose you to chemicals including lead and lead compounds, DEHP and bisphenol A (BPA) which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Replacement Parts / Kit Components
