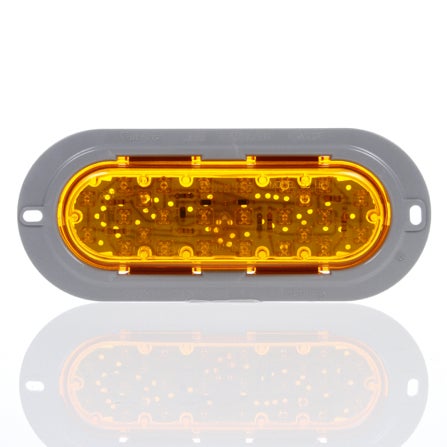

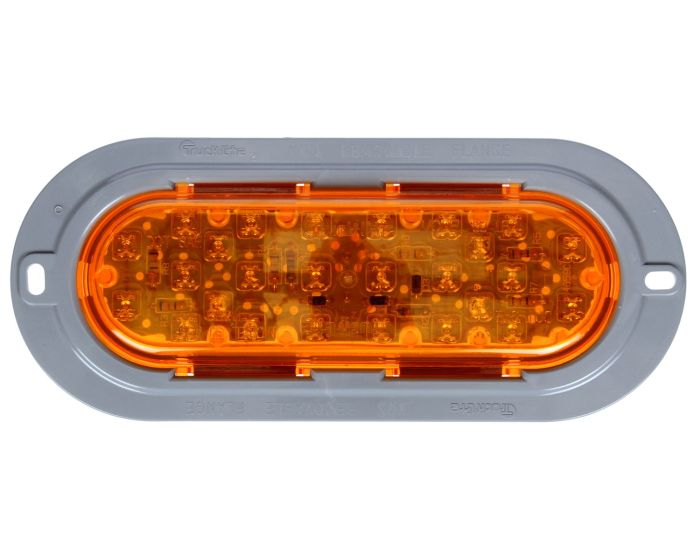

Product Name | 60 Series, LED, Yellow Oval, 26 Diode, Auxiliary Turn Signal, Gray Flange Mount, Fit 'N Forget S.S., Straight PL-3 Female, 12V, Kit |
---|---|
Brand | TL |
Category | Turn Signal |
Series | 60 Series |
Warranty | Lifetime |
Compliance Family | FMVSS 108|CMVSS 108|DOT|SAE |
Country of Origin | ZZ |
Current Minor | .1 |
Features & Benefits | Auxiliary turn is a two function lamp and compiles with SAE 592e and 2042 on both functions|Use part# 60315Y for LED Side Turn applications SAE J2039|Sequential arrow is to be used as an auxiliary lamp only and requires a 50% on time flasher, part #97231|Not suitable for ''stand alone'' front or rear turn applications|Electronics completely sealed in epoxy to resist corrosion and moisture |
Feature Highlights | PL-3|Fit 'N Forget S.S.|Kit|12 V |
Housing Material | Polycarbonate |
Itm Id | 2203629 |
KIT (Yes/No) | Yes |
Lens Shape | Oval |
Lighting Technology | LED |
Lamp Connection | Fit 'N Forget S.S. |
Lens Color | Yellow |
Lens Height_INH | 2.32 |
Lens Material | Polycarbonate |
Lens Width_INH | 6.5 |
Mount/Trim Color | Gray |
Mount/Trim Material | ABS |
Mount Type | Flange Mount |
NAPA Part Number | 60072Y |
Number of Diodes/Bulbs | 26 |
Number of Wires | 3 |
Packaging Type | Standard |
Part Number | 60072Y4 |
Plug Side One (Simplified) | Fit 'N Forget S.S. |
Plug Side One | Fit 'N Forget S.S. |
Plug Side Two | Straight Female PL-3 |
Position | Auxiliary |
Reflectorized (Yes/No) | No |
Sealed/Bulb Replaceable | Sealed |
Standards Met | I|P3|S2|T2 |
Std Carton Qty | 1 |
Taxonomy | Lights.Turn Signal Lights |
Total Depth_MMT | 41.15 |
Total Depth | 1.62 |
Temp. Description | LED Mdl 60 Auxiliary/Turn Gray |
Total Height_MMT | 84.07 |
Total Height | 3.31 |
Total Length | .42 |
Total Width_MMT | 200.15 |
Total Width | 7.88 |
UNSPSC/Tariff | 25172900 |
UPC | 0735111021544 |
VMRS | 034-003-057 |
Voltage (VLT) | 12 |
Weight | .72 |
