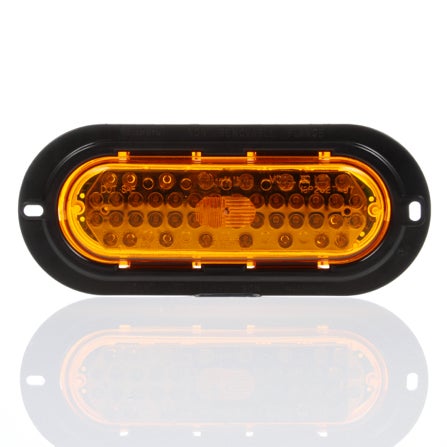

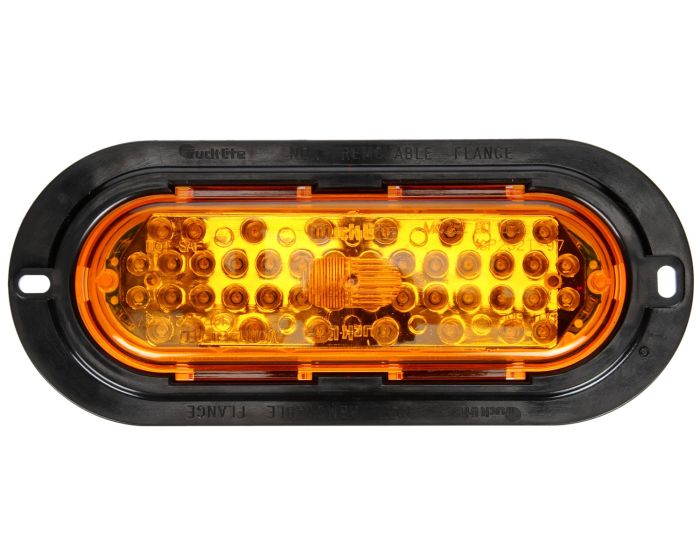

60 Series, LED, Yellow Oval, 44 Diode, Front/Park/Turn, Black ABS, Flange Mount, 12V, Fit 'N Forget S.S., Straight PL-3 Female, Kit
60097Y
Faster illumination offers significant safety benefit for following drivers to react quicker, resulting in an average of 3' reaction time advantage for every 10 mph|Meets stringent Front, Park and Turn requirements|LEDs have no filament, therefore are not susceptible to shock and vibration|Less current draw, resulting in increased battery and alternator life while allowing more power for other vehicle requirements
- PL-3
- Fit 'N Forget S.S.
- Kit
- 12 V
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | 60 Series, LED, Yellow Oval, 44 Diode, Front/Park/Turn, Black ABS, Flange Mount, 12V, Fit 'N Forget S.S., Straight PL-3 Female, Kit |
|---|---|
| Brand | TL |
| Category | Front/Park/Turn |
| Series | 60 Series |
| Warranty | Lifetime |
| Compliance Family | FMVSS 108|CMVSS 108|DOT|SAE |
| Common Size | 2"x6" |
| Country of Origin | ZZ |
| Current Major | 0.55 |
| Current Minor | 0.09 |
| Diamond Shell (Yes/No) | No |
| Features & Benefits | Faster illumination offers significant safety benefit for following drivers to react quicker, resulting in an average of 3' reaction time advantage for every 10 mph|Meets stringent Front, Park and Turn requirements|LEDs have no filament, therefore are not susceptible to shock and vibration|Less current draw, resulting in increased battery and alternator life while allowing more power for other vehicle requirements |
| Feature Highlights | PL-3|Fit 'N Forget S.S.|Kit|12 V |
| Housing Material | Polycarbonate |
| Itm Id | 2204453 |
| KIT (Yes/No) | Yes |
| Lens Shape | Oval |
| Lighting Technology | LED |
| Lamp Connection | Fit 'N Forget S.S. |
| Lens Color | Yellow |
| Lens Height_INH | 2.32 |
| Lens Material | Polycarbonate |
| Lens Width_INH | 6.5 |
| Mount/Trim Color | Black |
| Mount/Trim Material | ABS |
| Mount Type | Flange Mount |
| NAPA Part Number | 60097Y |
| Number of Diodes/Bulbs | 44 |
| Number of Wires | 3 |
| Packaging Type | Standard |
| Part Number | 60097Y4 |
| Plug Side One (Simplified) | Fit 'N Forget S.S. |
| Plug Side One | Fit 'N Forget S.S. |
| Plug Side Two | Straight Female PL-3 |
| Sealed/Bulb Replaceable | Sealed |
| Standards Met | I6|P|P2 |
| Std Carton Qty | 1 |
| Taxonomy | Lights.Front/Park/Turn Lights |
| Total Depth_MMT | 41.15 |
| Total Depth | 1.62 |
| Temp. Description | LED Mdl 60 F/P/T Black Flange |
| Total Height_MMT | 84.07 |
| Total Height | 3.31 |
| Total Width_MMT | 200.15 |
| Total Width | 7.88 |
| UNSPSC/Tariff | 25172900 |
| UPC | 7.35111E+11 |
| VMRS | 034-003-057 |
| Voltage (VLT) | 12 |
| Weight | 0.2 |
