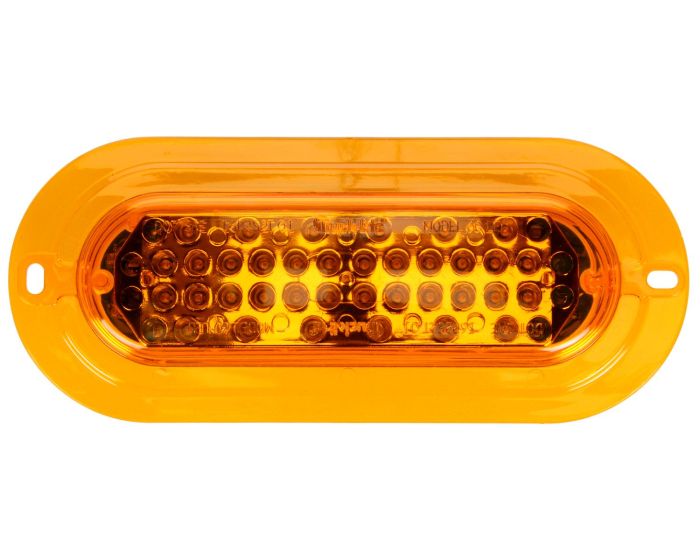

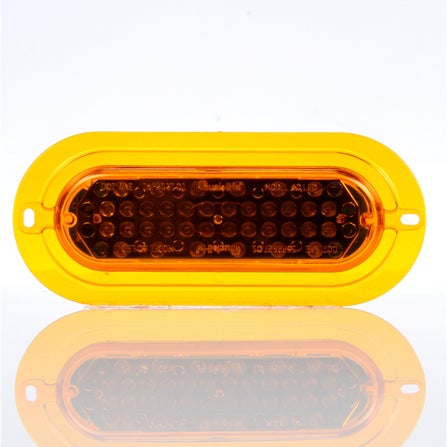

Super 60, LED, Warning, 36 Diode, 6" Oval, Amber, Gray Flange mount, Fit 'N Forget, 12V-KIT
60124Y
Dual or quad flashing pattern, Meets J595 Class 1 on both patterns, Fit 'N Forget integral plug, 5 Year Warranty, Signature Truck-Lite Styling and rugged construction, Heating element to prevent ice and snow buildup.Kit Includes Light, and Pigtail Connector
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | Super 60, LED, Warning, 36 Diode, 6" Oval, Amber, Gray Flange mount, Fit 'N Forget, 12V-KIT |
|---|---|
| Brand | TL |
| Category | Strobe Lamp |
| Series | Super 60 |
| Warranty | Lifetime |
| Compliance Family | FMVSS 108|CMVSS 108|DOT|SAE |
| Common Size | 2"x6" |
| Current_AMP | 0.5 |
| Features & Benefits | Dual or quad flashing pattern, Meets J595 Class 1 on both patterns, Fit 'N Forget integral plug, 5 Year Warranty, Signature Truck-Lite Styling and rugged construction, Heating element to prevent ice and snow buildup.Kit Includes Light, and Pigtail Connect |
| Flashing Patterns | Dual|Quad |
| Housing Material | Polycarbonate |
| Itm Id | 2205000 |
| KIT (Yes/No) | Yes |
| Lens Shape | Oval |
| Lighting Technology | LED |
| Lamp Connection | Fit 'N Forget S.S. |
| Lens Color | Yellow |
| Lens Height_INH | 4.25 |
| Lens Material | Polycarbonate |
| Lens Width_INH | 4.25 |
| Metalized/Non-Metalized | Non-Metalized |
| Mount/Trim Color | Gray |
| Mount/Trim Material | Polycarbonate |
| Mount Type | Flange Mount |
| NAPA Part Number | 60124Y |
| Number of Diodes/Bulbs | 36 |
| Number of Flash Patterns | 2 |
| Packaging Type | Standard |
| Part Number | 60124Y4 |
| Plug Side One (Simplified) | Fit 'N Forget S.S. |
| Plug Side One | Fit 'N Forget S.S. |
| Plug Side Two | Stripped End|Ring Terminal |
| Power Type | Self-Contained |
| Sealed/Bulb Replaceable | Sealed |
| Selectable Flash Patterns (Yes/No) | Yes |
| Standards Met | J595 Class I |
| Std Carton Qty | 1 |
| Taxonomy | Lights.Strobes |
| Total Depth_MMT | 34.07 |
| Total Depth | 1.35 |
| Temp. Description | LED Mdl 60 Strobe Lamp Flange |
| Total Height_MMT | 84.1 |
| Total Height | 3.31 |
| Total Width_MMT | 199.6 |
| Total Width | 7.86 |
| UNSPSC/Tariff | 39111706 |
| UPC | 735111070719 |
| VMRS | 034-001-063 |
| Voltage (VLT) | 12 |
| Warning Class | I |
| Weight | 0.364 |
