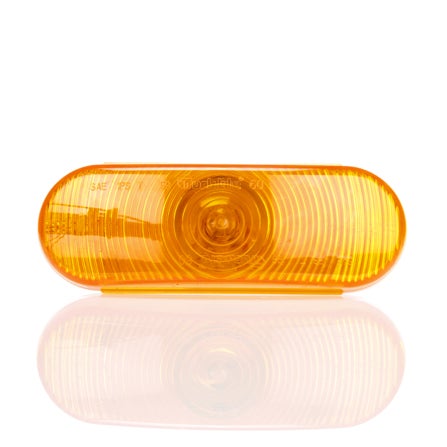

Super 60, Incandescent, Yellow Oval, 1 Bulb, Front/Park/Turn, 12V, PL-3
60202Y
Mount horizontally or vertically|Right angle plug assembly|Upgrade to Truck-Lite LED lighting systems using Super 66 or 60 Series LED products
- No Plug
- PL-3
- 12 V
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | Super 60, Incandescent, Yellow Oval, 1 Bulb, Front/Park/Turn, 12V, PL-3 |
|---|---|
| Brand | TL |
| Category | Front/Park/Turn |
| Series | Super 60 |
| Warranty | 2-Year |
| Compliance Family | FMVSS 108|CMVSS 108|DOT|SAE |
| Common Root | 60202Y |
| Common Size | 2"x6" |
| Country of Origin | ZZ |
| Current Major | 2.1 |
| Current Minor | 0.48 |
| Diamond Shell (Yes/No) | No |
| Features & Benefits | Mount horizontally or vertically|Right angle plug assembly|Upgrade to Truck-Lite LED lighting systems using Super 66 or 60 Series LED products |
| Feature Highlights | No Plug|PL-3|12 V |
| Housing Material | Polycarbonate |
| Itm Id | 2205632 |
| KIT (Yes/No) | No |
| Lens Shape | Oval |
| Lighting Technology | Incandescent |
| Lamp Connection | PL-3 |
| Lens Color | Yellow |
| Lens Height_INH | 2.25 |
| Lens Material | Polycarbonate |
| Lens Width_INH | 6.5 |
| Mount Type | Grommet Mount |
| NAPA Part Number | 60202Y |
| Number of Diodes/Bulbs | 1 |
| Number of Wires | 3 |
| Packaging Type | Standard |
| Part Number | 60202Y4 |
| Plug Side One | No Plug |
| Plug Side Two | No Plug |
| Sealed/Bulb Replaceable | Sealed |
| Standards Met | I6|P|P2 |
| Std Carton Qty | 1 |
| Taxonomy | Lights.Front/Park/Turn Lights |
| Total Depth_MMT | 63.5 |
| Total Depth | 2.5 |
| Temp. Description | Super Mdl 60 T/S Lamp |
| Total Height_MMT | 57.15 |
| Total Height | 2.25 |
| Total Width_MMT | 165.1 |
| Total Width | 6.5 |
| UNSPSC/Tariff | 25172900 |
| UPC | 7.35111E+11 |
| VMRS | 034-002-013 |
| Voltage (VLT) | 12 |
| Weight | 0.3 |
