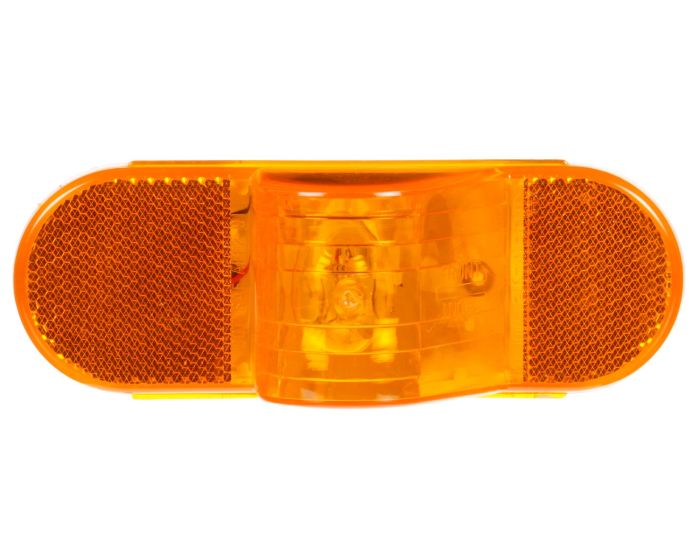

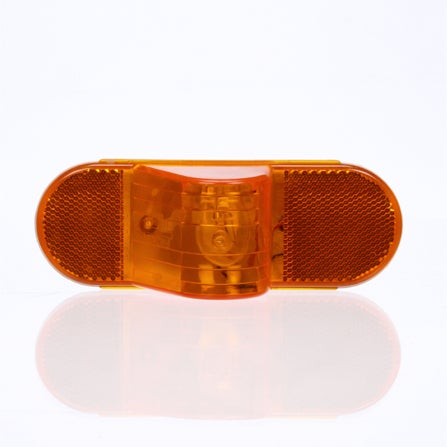

Product Name | 60 Series, Horizontal Mount, Incandescent, Yellow Oval, 1 Bulb, Side Turn Signal, PL-3, 12V |
---|---|
Brand | TL |
Category | Turn Signal |
Series | 60 Series |
Warranty | 1-Year |
Compliance Family | FMVSS 108|CMVSS 108|DOT|SAE |
Common Root | 60215Y |
Country of Origin | ZZ |
Current Minor | .49 |
Features & Benefits | Features side indicator, marker/clearance and reflector functions|Narrow width facilitates horizontal mounting|Red lamp should be used only for rear vehicle applications|Meets SAE J2039 recommendation for side turn signal|Upgrade to Truck-Lite LED lighting systems using Super 60 LED Products |
Feature Highlights | No Plug|PL-3|12 V |
Housing Material | Polycarbonate |
Itm Id | 2206256 |
KIT (Yes/No) | No |
Lens Shape | Oval |
Lighting Technology | Incandescent |
Lamp Connection | PL-3 |
Lamp Connection (Simplified) | PL-3 |
Lens Color | Yellow |
Lens Height_INH | 2.25 |
Lens Material | Polycarbonate |
Lens Width_INH | 6.5 |
Mount Type | Grommet Mount |
NAPA Part Number | 60215Y |
Number of Diodes/Bulbs | 1 |
Packaging Type | Standard |
Part Number | 60215Y4 |
Plug Side One | No Plug |
Plug Side Two | No Plug |
Position | Side |
Reflectorized (Yes/No) | Yes |
Sealed/Bulb Replaceable | Sealed |
Standards Met | P2|A|E |
Std Carton Qty | 5 |
Taxonomy | Lights.Turn Signal Lights |
Total Depth_MMT | 63.5 |
Total Depth | 2.5 |
Temp. Description | Mdl 60 Side Turn Indicator |
Total Height_MMT | 57.15 |
Total Height | 2.25 |
Total Length | 2.1 |
Total Width_MMT | 165.1 |
Total Width | 6.5 |
UNSPSC/Tariff | 25172900 |
UPC | 0735111042204 |
VMRS | 034-003-097 |
Voltage (VLT) | 12 |
Weight | .28 |
