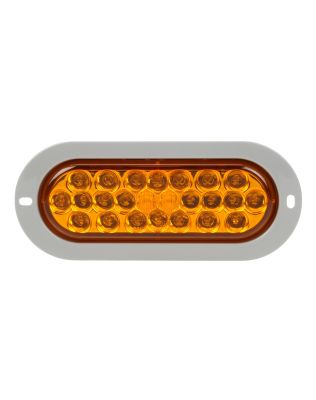

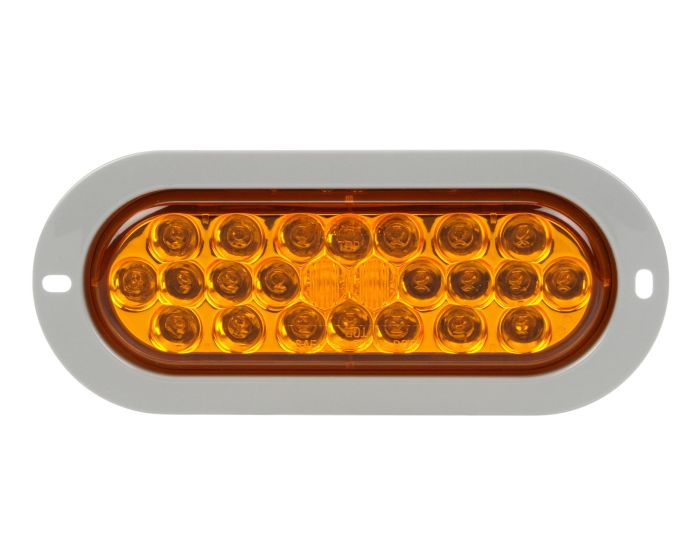

Signal-Stat, LED, Yellow Oval, 24 Diode, Front/Park/Turn, Gray Polycarbonate, Flange, 12V, PL-3, Bulk
6053A-3
Housing and flange are molded together to form one piece|Uses standard right angle PL-3 connection|Designed with impact-resistant polycarbonate material|LEDs do not have a filament, therefore are not susceptible to shock and vibration damage major cause of failure for lamps with an incandescent bulb|Epoxy-encapsulated electronics prevents damage from moisture and corrosion|When properly mounted, exceeds FMVSS DOT requirements for S/T/T and F/P/T|Lamps come with Truck-Lite 2-Year Limited Warranty
- No Plug
- PL-3
- Bulk
- 12 V
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | Signal-Stat, LED, Yellow Oval, 24 Diode, Front/Park/Turn, Gray Polycarbonate, Flange, 12V, PL-3, Bulk |
|---|---|
| Brand | Signal-Stat |
| Category | Front/Park/Turn |
| Series | Signal-Stat |
| Warranty | 2-Year |
| Compliance Family | FMVSS 108|CMVSS 108|DOT|SAE |
| Common Root | 6053A |
| Common Size | 2"x6" |
| Country of Origin | TW |
| Current Major | 0.38 |
| Current Minor | 0.03 |
| Diamond Shell (Yes/No) | No |
| Features & Benefits | Housing and flange are molded together to form one piece|Uses standard right angle PL-3 connection|Designed with impact-resistant polycarbonate material|LEDs do not have a filament, therefore are not susceptible to shock and vibration damage major cause of failure for lamps with an incandescent bulb|Epoxy-encapsulated electronics prevents damage from moisture and corrosion|When properly mounted, exceeds FMVSS DOT requirements for S/T/T and F/P/T|Lamps come with Truck-Lite 2-Year Limited Warranty |
| Feature Highlights | No Plug|PL-3|Bulk|12 V |
| Housing Material | Polycarbonate |
| Itm Id | 3954037 |
| KIT (Yes/No) | No |
| Lens Shape | Oval |
| Lighting Technology | LED |
| Lamp Connection | PL-3 |
| Lens Color | Yellow |
| Lens Height_INH | 2.49 |
| Lens Material | Polycarbonate |
| Lens Width_INH | 6.75 |
| Mount/Trim Color | Gray |
| Mount/Trim Material | Polycarbonate |
| Mount Type | Flange Mount |
| NAPA Part Number | 6053A-3 |
| Number of Diodes/Bulbs | 24 |
| Packaging Type | Bulk |
| Part Number | SS6053A-3 |
| Plug Side One | No Plug |
| Plug Side Two | No Plug |
| Sealed/Bulb Replaceable | Sealed |
| Standards Met | I6|P|P2 |
| Std Carton Qty | 50 |
| Taxonomy | Lights.Front/Park/Turn Lights |
| Total Depth_MMT | 42.42 |
| Total Depth | 1.67 |
| Total Height_MMT | 84.07 |
| Total Height | 3.31 |
| Total Width_MMT | 199.9 |
| Total Width | 7.87 |
| UNSPSC/Tariff | 25172900 |
| UPC | 7.35111E+11 |
| VMRS | 034-003-057 |
| Voltage (VLT) | 12 |
| Weight | 27.8 |
