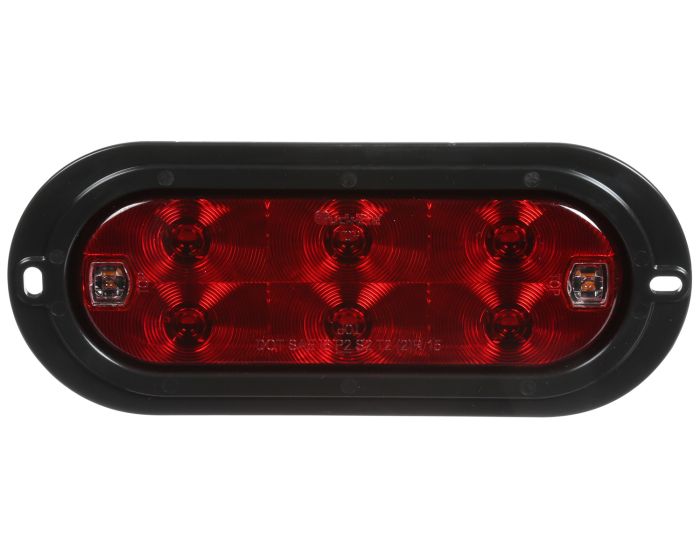

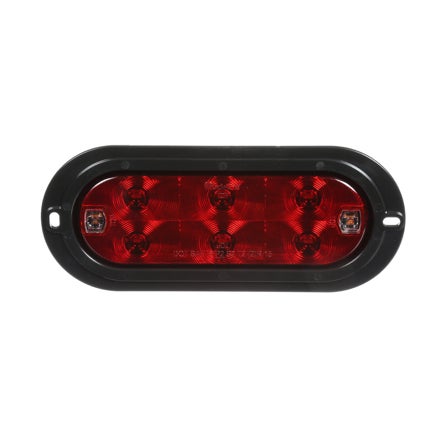

60 Series LED 2"x6" Oval 8 Diode Red|Clear Polycarbonate Lens, Black Polycarbonate Flush Mount,Hardwired .180 Bullet 12V, I6|P2|T|R|S2 Stop Turn Tail and Integrated Back Up Light
60550R
Offers the same safety and low maintenance benefits of existing LED S/T/T and BU lights now in one package|Not orientation dependent; complies with FMVSS 108 vertically or horizontally|Save space in inventory|Lower cost system|The new combination lamps are the same size as existing Truck-Lite Model 60 lights, which means they fit into existing mounting holes|Limited lifetime warranty
- Hardwired
- .180 Bullet
- 12 V
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | 60 Series LED 2"x6" Oval 8 Diode Red|Clear Polycarbonate Lens, Black Polycarbonate Flush Mount,Hardwired .180 Bullet 12V, I6|P2|T|R|S2 Stop Turn Tail and Integrated Back Up Light |
|---|---|
| Brand | TL |
| Category | Stop/Turn/Tail & Back-Up |
| Series | 60 Series |
| Warranty | Lifetime |
| Compliance Family | FMVSS 108|CMVSS 108|DOT|SAE |
| Common Size | 2"x6" |
| Country of Origin | ZZ |
| Current Minor | .02 |
| Diamond Shell (Yes/No) | No |
| Features & Benefits | Offers the same safety and low maintenance benefits of existing LED S/T/T and BU lights now in one package|Not orientation dependent; complies with FMVSS 108 vertically or horizontally|Save space in inventory|Lower cost system|The new combination lamps are the same size as existing Truck-Lite Model 60 lights, which means they fit into existing mounting holes|Limited lifetime warranty |
| Feature Highlights | Hardwired|.180 Bullet|12 V |
| Housing Material | Polycarbonate |
| Itm Id | 4053839 |
| KIT (Yes/No) | No |
| Lens Shape | Oval |
| Lighting Technology | LED |
| Lamp Connection | Hardwired |
| Lens Color | Red|Clear |
| Lens Height_INH | 2.1 |
| Lens Material | Polycarbonate |
| Lens Width_INH | 6.32 |
| Mount/Trim Color | Black |
| Mount/Trim Material | Polycarbonate |
| Mount Type | Flush Mount |
| Number of Diodes/Bulbs | 8 |
| Number of Wires | 4 |
| Packaging Height | 0 |
| Packaging Type | Standard |
| Part Number | 60550R4 |
| Plug Side One | Hardwired |
| Plug Side Two | .180 Bullet |
| Reflectorized (Yes/No) | No |
| Sealed/Bulb Replaceable | Sealed |
| Standards Met | I6|P2|T|R|S2 |
| Std Carton Qty | 1 |
| Taxonomy | Lights.Stop/Turn/Tail Lights |
| Total Depth_MMT | 19.16 |
| Total Depth | .75 |
| Total Height_MMT | 84.1 |
| Total Height | 3.31 |
| Total Length | .24 |
| Total Width_MMT | 199.48 |
| Total Width | 7.85 |
| UNSPSC/Tariff | 25172900 |
| UPC | 0735111197065 |
| VMRS | 034-002-013 |
| Voltage (VLT) | 12 |
| Weight | .43 |
