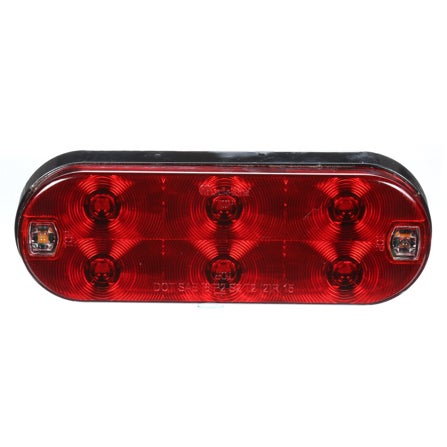

Product Name | 60 Series LED 2"x6" Oval 8 Diode Red|Clear Polycarbonate Lens, Grommet Mount,Fit 'N Forget 4 Pin S.S. 12V, I6|P2|T|R|S2 Stop Turn Tail and Integrated Back Up Light |
---|---|
Brand | TL |
Category | Stop/Turn/Tail & Back-Up |
Series | 60 Series |
Warranty | Lifetime |
Compliance Family | FMVSS 108|CMVSS 108|DOT|SAE |
Common Size | 2"x6" |
Country of Origin | ZZ |
Current Minor | .02 |
Diamond Shell (Yes/No) | No |
Features & Benefits | Offers the same safety and low maintenance benefits of existing LED S/T/T and BU lights now in one package|Not orientation dependent; complies with FMVSS 108 vertically or horizontally|Save space in inventory|Lower cost system|The new combination lamps are the same size as existing Truck-Lite Model 60 lights, which means they fit into existing mounting holes|Limited lifetime warranty |
Feature Highlights | No Plug|12 V |
Housing Material | Polycarbonate |
Itm Id | 4058672 |
KIT (Yes/No) | No |
Lens Shape | Oval |
Lighting Technology | LED |
Lamp Connection | Fit 'N Forget 4 Pin S.S. |
Lens Color | Red|Clear |
Lens Height_INH | 2.1 |
Lens Material | Polycarbonate |
Lens Width_INH | 6.32 |
Mount Type | Grommet Mount |
Number of Diodes/Bulbs | 8 |
Packaging Height | 0 |
Packaging Type | Standard |
Part Number | 60557R4 |
Plug Side One | No Plug |
Plug Side Two | No Plug |
Reflectorized (Yes/No) | No |
Sealed/Bulb Replaceable | Sealed |
Standards Met | I6|P2|T|R|S2 |
Std Carton Qty | 1 |
Taxonomy | Lights.Stop/Turn/Tail Lights |
Total Depth_MMT | 32.15 |
Total Depth | 1.27 |
Total Height_MMT | 56.9 |
Total Height | 2.24 |
Total Length | .24 |
Total Width_MMT | 164.71 |
Total Width | 6.48 |
UNSPSC/Tariff | 25172900 |
UPC | 0735111197324 |
VMRS | 034-002-013 |
Voltage (VLT) | 12 |
Weight | .31 |
