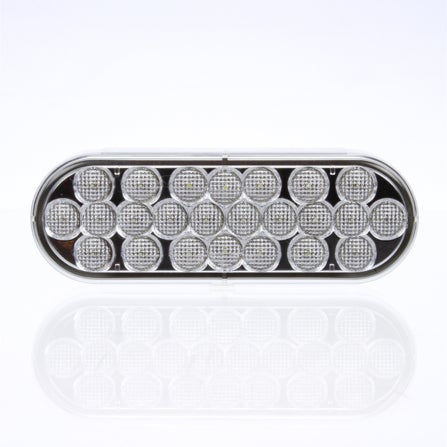

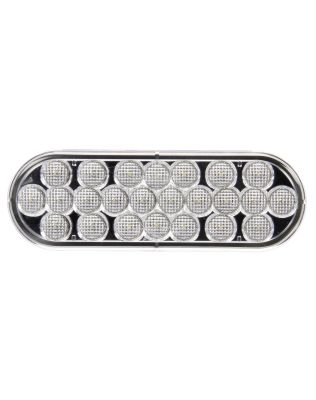

Signal-Stat, LED, Clear Oval, 24 Diode, Back-Up Light, PL-2, 12V
6060C
Popular on owner/operator show trucks|Uses standard right-angle connection|24-diode pattern|Unique LED array displays a full pattern light output design|Epoxy-encapsulated electronics prevents damage from moisture and corrosion|Less current draw, resulting in increased battery and alternator life while allowing more power for other vehicle requirements|LEDs have no filament, therefore are extremely resistant to shock and vibration, |Two lamps required for back-up|Legal mounted horizontally or vertically
- No Plug
- LC_PL-2
- 12 V
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | Signal-Stat, LED, Clear Oval, 24 Diode, Back-Up Light, PL-2, 12V |
|---|---|
| Brand | Signal-Stat |
| Category | Back-Up Light |
| Series | Signal-Stat |
| Warranty | 2-Year |
| Compliance Family | FMVSS 108|CMVSS 108|DOT|SAE |
| Common Root | 6060C |
| Country of Origin | TW |
| Current_AMP | .25 |
| Diamond Shell (Yes/No) | No |
| Features & Benefits | Popular on owner/operator show trucks|Uses standard right-angle connection|24-diode pattern|Unique LED array displays a full pattern light output design|Epoxy-encapsulated electronics prevents damage from moisture and corrosion|Less current draw, resulting in increased battery and alternator life while allowing more power for other vehicle requirements|LEDs have no filament, therefore are extremely resistant to shock and vibration, |Two lamps required for back-up|Legal mounted horizontally or vertically |
| Feature Highlights | No Plug|LC_PL-2|12 V |
| Housing Material | Polycarbonate |
| Itm Id | 2873622 |
| KIT (Yes/No) | No |
| Lens Shape | Oval |
| Lighting Technology | LED |
| Lamp Connection | PL-2 |
| Lens Color | Clear |
| Lens Height_INH | 2.3 |
| Lens Material | Polycarbonate |
| Lens Width_INH | 6.48 |
| Mount Type | Grommet Mount |
| NAPA Part Number | 6060C |
| Number of Diodes/Bulbs | 24 |
| Packaging Type | Standard |
| Part Number | SS6060C-S |
| Plug Side One | No Plug |
| Plug Side Two | No Plug |
| Sealed/Bulb Replaceable | Sealed |
| Standards Met | R2 |
| Std Carton Qty | 1 |
| Taxonomy | Lights.Back-Up Lights |
| Total Depth_MMT | 57.15 |
| Total Depth | 2.25 |
| Temp. Description | LED Signal Stat Mdl 60 B/U |
| Total Height_MMT | 44.45 |
| Total Height | 1.75 |
| Total Width_MMT | 165.1 |
| Total Width | 6.5 |
| UNSPSC/Tariff | 25172900 |
| UPC | 0735111158523 |
| VMRS | 034-003-074 |
| Voltage (VLT) | 12 |
| Weight | .54 |
