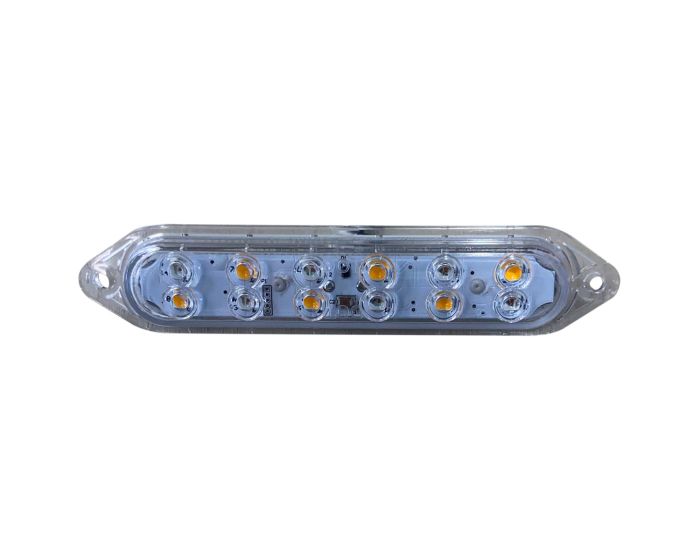

61 Series, LED, Auxiliary, Brake-Activated Warning Light
61500R
Brake-activated warning lamps are amber in color and act as a Class II strobe (pulsate) for up to 4 seconds with each application of the brake, then steadily burn red for the duration of the time the brake circuit is activated.
The Federal Motor Carrier Safety Administration (FMCSA) has granted vehicles operating trailer and van body trucks to install brake-activated pulsating lamps on the rear of their trailer in order to increase visibility and reduce the risk of rear-end collisions. See FMCSA-2020-0122 for more information.
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | 61 Series, LED, Auxiliary, Brake-Activated Warning Light |
|---|---|
| SKU | 61500R |
| Color | None |
| Brand | Truck-Lite |
| Category | Stop/Warning |
| Series | 61 Series |
| Warranty | 3 year |
| Ampere Rating | 0.250A |
| Compliance Family | FMVSS 108|CMVSS 108|DOT|SAE |
| Country of Origin | US |
| Current Minor | .250A |
| Diamond Shell (Yes/No) | No |
| Features & Benefits | The use of pulsating brake-activated warning lamps increases visibility of equipment and vehicles. The use of amber pulsating brake-activated warning lamps, in addition to steady-burning red brake lamps required by the FMCSRs, allows commercial carriers t |
| Housing Material | Polycarbonate |
| KIT (Yes/No) | No |
| Lens Shape | Oval |
| Lighting Technology | LED |
| Lamp Connection | .180 bullets |
| Lens Color | Clear |
| Lens Height_INH | 0.5 |
| Lens Material | Polycarbonate |
| Lens Width_INH | 5 |
| Mount/Trim Color | Amber |
| Mount/Trim Material | Polycarbonate |
| Mount Type | 2 Screw |
| Number of Diodes/Bulbs | 12 |
| Number of Wires | 2 |
| Part Number | 61500R |
| Plug Side Two | .180 Bullet |
| Reflectorized (Yes/No) | No |
| Sealed/Bulb Replaceable | Sealed |
| Taxonomy | Lights.Stop/Turn/Tail Lights |
| Total Depth_MMT | 127 |
| Total Depth | 1" |
| Total Height_MMT | 11.1 |
| Total Height | 0.5" |
| Total Width_MMT | 25.4 |
| Total Width | 5" |
| Voltage (VLT) | 12 |
| Weight | 0.12 lb |
