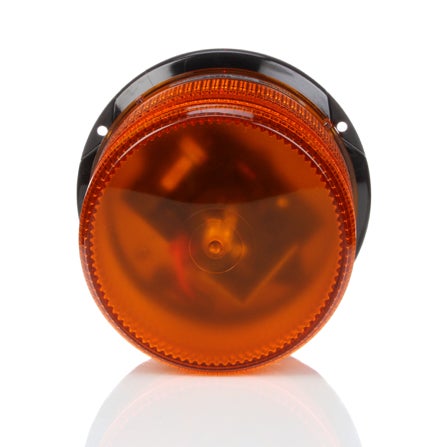

Signal-Stat, LED, Low Profile Beacon, Amber, Permanent Mount/Pipe Mount, Hardwired, Stripped End
6600A
This beacon combines all the major benefits of the latest LED technology with a traditional, strobe style housing at a price point comparable to a strobe. Available in either 5” or 7” height profiles, this is suitable for a wide range of applications. This product features 12-48VDC operation and 3 flash patterns to produce an attention getting warning signal.
- Stripped End
- Hardwired
- 12 V
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | Signal-Stat, LED, Low Profile Beacon, Amber, Permanent Mount/Pipe Mount, Hardwired, Stripped End |
|---|---|
| Brand | Signal-Stat |
| Category | Beacon |
| Series | Signal-Stat |
| Warranty | 5-Year |
| Beacon Frequency (FPM) | 80 |
| Country of Origin | US |
| Current_AMP | 1.3A Max |
| Features & Benefits | Multi-Flash Class 2 Strobe|Field-selectable flash patterns via internal jumper single, double, quad flash|Modular circuit is completely encapsulated for increased shock and weather resistance|New design features twist on/off lens|Electronics sealed in epoxy for increased weather and shock resistance |
| Feature Highlights | Stripped End|Hardwired|12 V |
| Flashing Patterns | 11 |
| Housing Material | Reinforced PPE |
| Itm Id | 1994781 |
| KIT (Yes/No) | No |
| Lens Shape | Round |
| Lighting Technology | LED |
| Lamp Connection | Stripped Ends |
| Lens Color | Yellow |
| Lens Height_INH | 4.13 |
| Lens Material | Polycarbonate |
| Lens Width_INH | 5.5 |
| Mount/Trim Color | Black |
| Mount/Trim Material | Polypropylene |
| Mount Type | 3 Bolt Flange or Pipe Mount |
| NAPA Part Number | 6600A |
| Number of Diodes/Bulbs | 1 |
| Number of Flash Patterns | 3 |
| Number of Wires | 3 |
| Packaging Type | Standard |
| Part Number | SS6600A-S |
| Plug Side One | Hardwired |
| Plug Side Two | Stripped End |
| Profile | Low Profile |
| Rotating/Strobe | Strobe |
| Sealed/Bulb Replaceable | Sealed |
| Selectable Flash Patterns (Yes/No) | Yes |
| Standards Met | CE|R10|J845 |
| Std Carton Qty | 1 |
| Taxonomy | Lights.Beacons |
| Total Depth_MMT | 173 |
| Total Depth | 6.8 |
| Temp. Description | LOW PROFILE STROBE LIGHT |
| Total Height_MMT | 120 |
| Total Height | 4.6 |
| Total Width_MMT | 173 |
| Total Width | 6.8 |
| UNSPSC/Tariff | 39111706 |
| UPC | 0735111173403 |
| VMRS | 034-006-028 |
| Voltage (VLT) | 12|48 |
| Warning Class | II |
| Weight | 0.9 |
