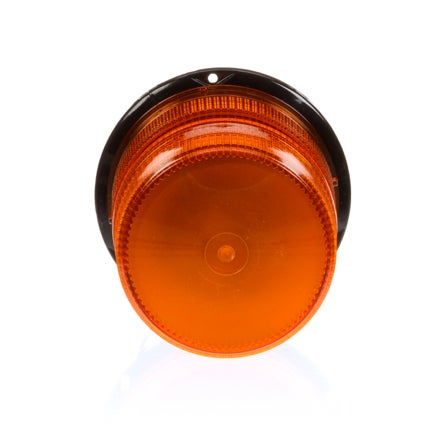

Signal-Stat, LED, Medium Profile Beacon, Amber, Permanent Mount/Pipe Mount, Hardwired, Stripped End, 12-24V
6811A
This LED beacon offer SAE Class I light output and Pulse8 flash operation combined with a long maintenance free service life and low amp draw, making this beacon a cost effective choice for many applications. Easily replace strobe or rotating beacons with the latest technology so no ongoing maintenance is required.
- Stripped End
- Hardwired
- Gas Discharge
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | Signal-Stat, LED, Medium Profile Beacon, Amber, Permanent Mount/Pipe Mount, Hardwired, Stripped End, 12-24V |
|---|---|
| Brand | Signal-Stat |
| Category | Beacon |
| Series | Signal-Stat |
| Warranty | 1-Year |
| Beacon Frequency (FPM) | 80 |
| Country of Origin | US |
| Current_AMP | 3.6A Max |
| Features & Benefits | Multi-Flash Class 1 and 2 Gas Discharge Strobe|Field-selectable flash patterns via internal jumper single, double, quad flash|LED diagnostic indicator|New improved product features twist on/off lens|Electronics sealed in epoxy for increased weather and shock resistance |
| Feature Highlights | Stripped End|Hardwired|Gas Discharge |
| Flashing Patterns | 11 |
| Housing Material | Aluminum |
| Itm Id | 1995767 |
| KIT (Yes/No) | No |
| Lens Shape | Round |
| Lighting Technology | LED |
| Lamp Connection | Stripped Ends |
| Lens Color | Yellow |
| Lens Height_INH | 5.88 |
| Lens Material | Polycarbonate |
| Lens Width_INH | 5.5 |
| Mount/Trim Color | Black |
| Mount/Trim Material | Aluminum |
| Mount Type | 3 Bolt Flange or Pipe Mount |
| NAPA Part Number | 6811A |
| Number of Diodes/Bulbs | 1 |
| Number of Wires | 3 |
| Packaging Type | Standard |
| Part Number | SS6811A-S |
| Plug Side One | Hardwired |
| Plug Side Two | Stripped End |
| Profile | Medium Profile |
| Rotating/Strobe | Strobe |
| Sealed/Bulb Replaceable | Sealed |
| Selectable Flash Patterns (Yes/No) | Yes |
| Standards Met | CE|R10|J845 |
| Std Carton Qty | 1 |
| Taxonomy | Lights.Beacons |
| Total Depth_MMT | 165 |
| Total Depth | 6.5 |
| Temp. Description | Medium Profile Strobe Light Ye |
| Total Height_MMT | 165 |
| Total Height | 6.5 |
| Total Width_MMT | 165 |
| Total Width | 6.5 |
| UNSPSC/Tariff | 39111706 |
| UPC | 7.35111E+11 |
| VMRS | 034-006-028 |
| Voltage (VLT) | 12|24 |
| Warning Class | I |
| Weight | 2.1 |
