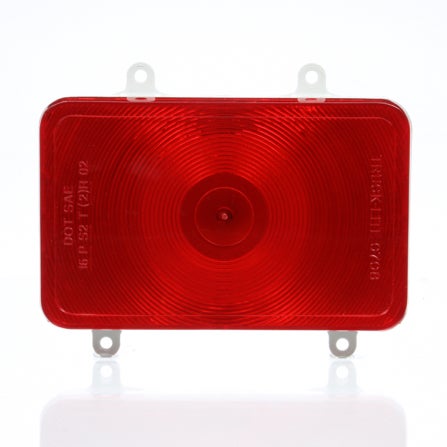

Bus, Incandescent, Red, Rectangular, 1 Bulb, Stop/Turn/Tail, 4 Screw, Blade Terminal, 24V

7092

12V lamps mate with PE Connector 6288471|Recess mounts using two screws at 30" centers and two screws at 42" centers|Watertight lamp mates withPackard connector

Be the first to review this product

Need To Order By Phone?

Product Name	Bus, Incandescent, Red, Rectangular, 1 Bulb, Stop/Turn/Tail, 4 Screw, Blade Terminal, 24V
Brand	TL
Category	Stop/Turn/Tail
Warranty	1-Year
Compliance Family	FMVSS 108\|CMVSS 108\|DOT\|SAE
Common Size	4"x6"
Country of Origin	ZZ
Current Minor	0.48
Diamond Shell (Yes/No)	No
Features & Benefits	12V lamps mate with PE Connector 6288471\|Recess mounts using two screws at 30" centers and two screws at 42" centers\|Watertight lamp mates withPackard connector
Itm Id	2034394
KIT (Yes/No)	No
Lens Shape	Rectangular
Lighting Technology	Incandescent
Lamp Connection	Blade Terminal
Lens Color	Red
Lens Height_INH	5.2
Lens Material	Polycarbonate
Lens Width_INH	6.46
Mount Type	4 Screw
Number of Diodes/Bulbs	1
Packaging Type	Standard
Part Number	07092-4
Plug Side One	No Plug
Plug Side Two	No Plug
Reflectorized (Yes/No)	No
Sealed/Bulb Replaceable	Sealed
Standards Met	I6\|P\|S2\|T2
Std Carton Qty	1
Taxonomy	Lights.Stop/Turn/Tail Lights
Total Depth_MMT	51.56
Total Depth	2.03
Temp. Description	Rectangular Tail 24 Volt-Speci
Total Height_MMT	132.59
Total Height	5.22
Total Length	2.1
Total Width_MMT	164.08
Total Width	6.46
UNSPSC/Tariff	25172900
UPC	735111009559
VMRS	017-009-015
Voltage (VLT)	24
Weight	1
