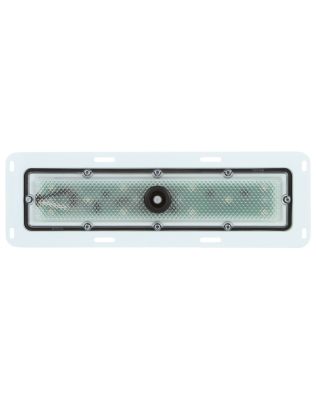

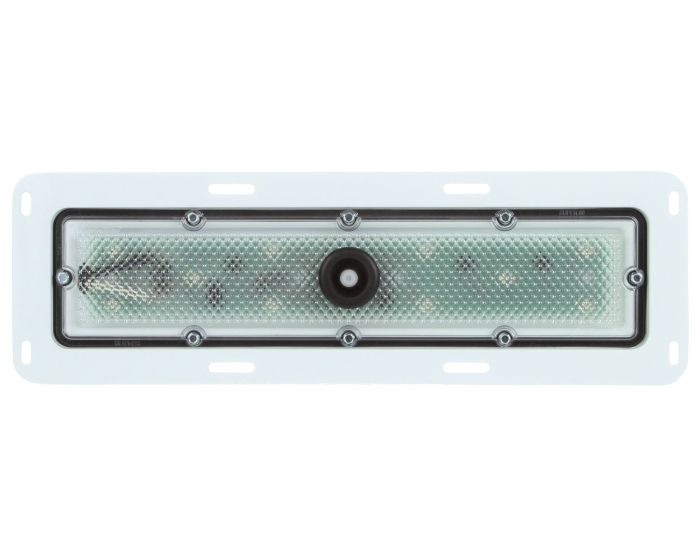

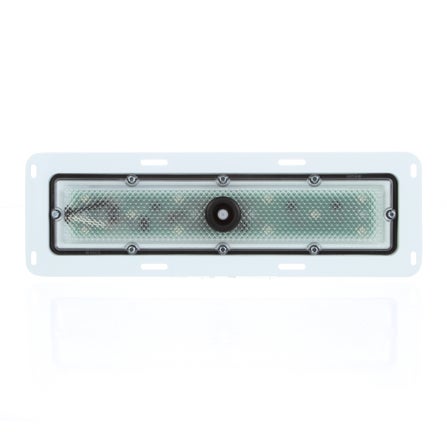

80 Series, LED, 10 Diode, Rectangular Clear, Dome Light, White 8 Screw Bracket Mount, Hardwired, .180 Bullet, 12V
80255C
Robust LED Dome Lamp withMotion Sensor located in center of lamp to power lamp on|Motion sensor determined by changes in heat and stays on through 5 minutes of inactivity|Nearly flush mount design, with only 1 inch protrusion to allow more room in vehicle body|Recognizes movement up to 10 feet away from lamp surface|Not affected by cold temperatures, providing flicker-free lighting with a faster start-up time|Ideal for refrigerated vehicles or those operating in cold weather|LED provide whiter, brighter light rated at 1,000 lumens, providing clearer, improved visibility|Solid-state LED design is impervious to damage from shock and vibration|Retrofit or replacement is quick and easy, with a standard 16x4 cut-out necessary for installation|LEDs are fully encapsulated in epoxy to prevent damage caused by moisture and corrosives|Operational Temperature -40 to 122 F
- Hardwired
- .180 Bullet
- 12 V
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | 80 Series, LED, 10 Diode, Rectangular Clear, Dome Light, White 8 Screw Bracket Mount, Hardwired, .180 Bullet, 12V |
|---|---|
| Brand | TL |
| Category | Dome Light |
| Series | 80 Series |
| Warranty | 3-Year |
| Common Root | 80255C |
| Country of Origin | ZZ |
| Current_AMP | 2 |
| Features & Benefits | Robust LED Dome Lamp withMotion Sensor located in center of lamp to power lamp on|Motion sensor determined by changes in heat and stays on through 5 minutes of inactivity|Nearly flush mount design, with only 1 inch protrusion to allow more room in vehicle body|Recognizes movement up to 10 feet away from lamp surface|Not affected by cold temperatures, providing flicker-free lighting with a faster start-up time|Ideal for refrigerated vehicles or those operating in cold weather|LED provide whiter, brighter light rated at 1,000 lumens, providing clearer, improved visibility|Solid-state LED design is impervious to damage from shock and vibration|Retrofit or replacement is quick and easy, with a standard 16x4 cut-out necessary for installation|LEDs are fully encapsulated in epoxy to prevent damage caused by moisture and corrosives|Operational Temperature -40 to 122 F |
| Feature Highlights | Hardwired|.180 Bullet|12 V |
| Housing Material | Aluminum |
| Itm Id | 3510858 |
| KIT (Yes/No) | No |
| Lens Shape | Rectangular |
| Lighting Technology | LED |
| Lamp Connection | Hardwired |
| Lens Color | Clear |
| Lens Height_INH | 3.7 |
| Lens Material | Polycarbonate |
| Lens Width_INH | 15.9 |
| Mount/Trim Color | White |
| Mount/Trim Material | Aluminum |
| Mount Type | 8 Screw Bracket Mount |
| NAPA Part Number | 80255C |
| Number of Diodes/Bulbs | 10 |
| Number of Wires | 2 |
| Packaging Type | Standard |
| Part Number | 80255C4 |
| Plug Side One | Hardwired |
| Plug Side Two | .180 Bullet |
| Sealed/Bulb Replaceable | Sealed |
| Std Carton Qty | 1 |
| Switch | No |
| Taxonomy | Lights.Interior Utility & Dome Lights |
| Total Depth_MMT | 27.43 |
| Total Depth | 1.08 |
| Temp. Description | LED MOTION SENSOR DOME 12V LMP |
| Total Height_MMT | 146.05 |
| Total Height | 5.75 |
| Total Width_MMT | 462.03 |
| Total Width | 18.19 |
| UNSPSC/Tariff | 25173000 |
| UPC | 0735111179009 |
| VMRS | 034-004-089 |
| Voltage (VLT) | 12 |
| Weight | 2.19 |
