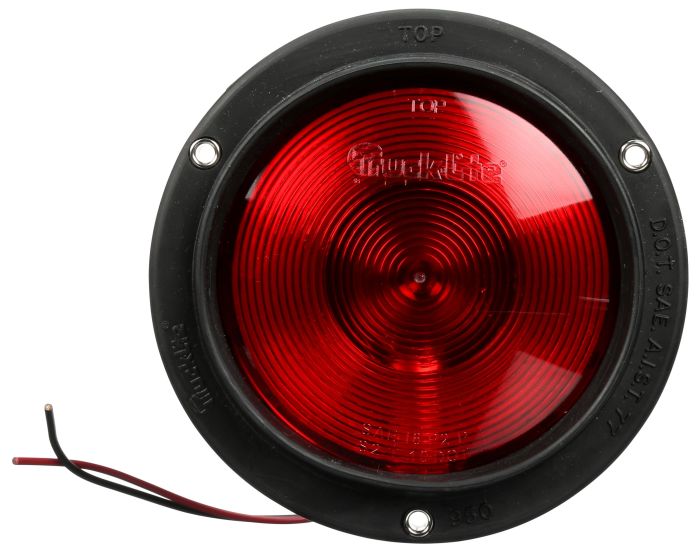

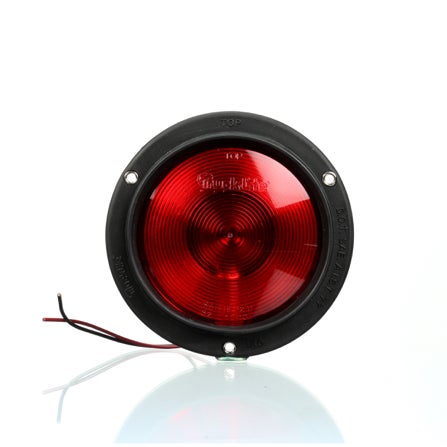

80 Series, Incandescent, Red, Round, 1 Bulb, Stop/Turn/Tail, Rubber Black Flange Mount, Hardwired, Blunt Cut, 12V
80339R
Features rubber housing for shock absorbency|Mounts flush to vehicle with recessed lens
- Hardwired
- Blunt Cut
- 12 V
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | 80 Series, Incandescent, Red, Round, 1 Bulb, Stop/Turn/Tail, Rubber Black Flange Mount, Hardwired, Blunt Cut, 12V |
|---|---|
| Brand | TL |
| Category | Stop/Turn/Tail |
| Series | 80 Series |
| Warranty | 1-Year |
| Compliance Family | FMVSS 108|CMVSS 108|DOT|SAE |
| Country of Origin | ZZ |
| Current Minor | .5 |
| Diamond Shell (Yes/No) | No |
| Features & Benefits | Features rubber housing for shock absorbency|Mounts flush to vehicle with recessed lens |
| Feature Highlights | Hardwired|Blunt Cut|12 V |
| Itm Id | 2243807 |
| KIT (Yes/No) | No |
| Lens Shape | Round |
| Lighting Technology | Incandescent |
| Lamp Connection | Hardwired |
| Lens Color | Red |
| Lens Height_INH | 4.23 |
| Lens Material | Polycarbonate |
| Lens Width_INH | 4.23 |
| Mount/Trim Color | Black |
| Mount/Trim Material | Rubber |
| Mount Type | Flange Mount |
| NAPA Part Number | 80339R |
| Number of Diodes/Bulbs | 1 |
| Number of Wires | 2 |
| Packaging Type | Standard |
| Part Number | 80339R4 |
| Plug Side One | Hardwired |
| Plug Side Two | Blunt Cut |
| Reflectorized (Yes/No) | No |
| Sealed/Bulb Replaceable | Bulb Replaceable |
| Standards Met | S2|I6|T |
| Std Carton Qty | 1 |
| Taxonomy | Lights.Stop/Turn/Tail Lights |
| Total Depth_MMT | 50.8 |
| Total Depth | 2 |
| Temp. Description | Mdl 80 Bulb Replaceable S/T/T |
| Total Height_MMT | 139.7 |
| Total Height | 5.5 |
| Total Length | 2.1 |
| Total Width_MMT | 139.7 |
| Total Width | 5.5 |
| UNSPSC/Tariff | 25172900 |
| UPC | 0735111025269 |
| VMRS | 034 002 013 |
| Voltage (VLT) | 12 |
| Weight | .6 |
