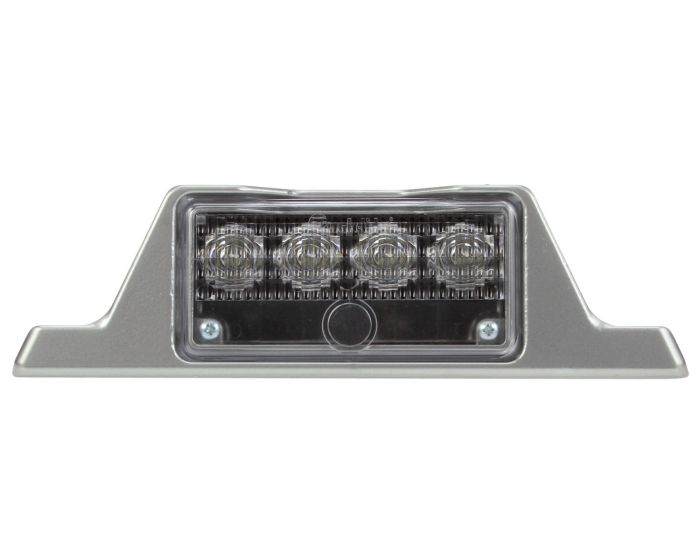

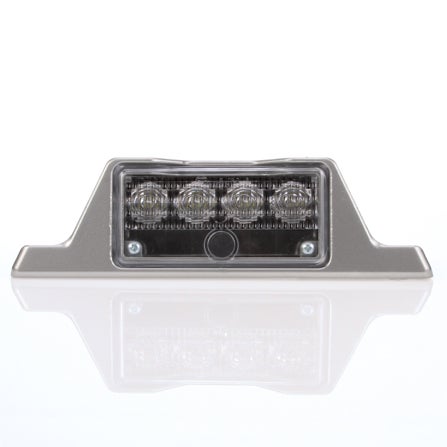

81 Series, LED, 6 Diode, 3x9 Rectangular Perimeter Light, Surface Mount, 12V, .180 Bullet
81335C
Adds up to 5' of valuable lighting to the perimeter of your vehicle, increasing visibility in areas in which dome or back-up lighting will not reach|Low profile lamp protrudes only 2.5" from vehicle surface while projecting light far beyond lamp surface|Heavy-duty, die-cast aluminum housing, with a glossy gray powder coat surface|Impact-resistant polycarbonate lens|Rear fins keep heat away from LEDs and lamp circuity, allowing for increased light output and lamp longevity|White LEDs offer daylight-like visibility, cleaner and clearer than other light source options|Minimal electrical draw (12a) allows for the use of multiple lamps, without demanding significant power from vehicle|Hardwired 180 bullet terminals prevent concerns for pin corrosion at lamp, and install without the need for adapters or additional wiring connections|Ideal for use with liftgate trailers and body vehicles|Care should be taken to install this device so that it cannot operate while the trailer or vehicle is in motion|Contact the Trailer/Vehicle OEM or Truck-Lite Technical Service for assistance
- Hardwired
- .180 Bullet
- 12 V
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | 81 Series, LED, 6 Diode, 3x9 Rectangular Perimeter Light, Surface Mount, 12V, .180 Bullet |
|---|---|
| Brand | TL |
| High Output | No |
| Category | Work Light |
| Series | 81 Series |
| Warranty | 5-Year |
| Country of Origin | ZZ |
| Current_AMP | 1.2 |
| Features & Benefits | Adds up to 5' of valuable lighting to the perimeter of your vehicle, increasing visibility in areas in which dome or back-up lighting will not reach|Low profile lamp protrudes only 2.5" from vehicle surface while projecting light far beyond lamp surface|Heavy-duty, die-cast aluminum housing, with a glossy gray powder coat surface|Impact-resistant polycarbonate lens|Rear fins keep heat away from LEDs and lamp circuity, allowing for increased light output and lamp longevity|White LEDs offer daylight-like visibility, cleaner and clearer than other light source options|Minimal electrical draw (12a) allows for the use of multiple lamps, without demanding significant power from vehicle|Hardwired 180 bullet terminals prevent concerns for pin corrosion at lamp, and install without the need for adapters or additional wiring connections|Ideal for use with liftgate trailers and body vehicles|Care should be taken to install this device so that it cannot operate while the trailer or vehicle is in motion|Contact the Trailer/Vehicle OEM or Truck-Lite Technical Service for assistance |
| Feature Highlights | Hardwired|.180 Bullet|12 V |
| Housing Color | Chrome |
| Housing Material | Die-Cast Aluminum |
| Itm Id | 3586895 |
| KIT (Yes/No) | No |
| Lens Shape | Rectangular |
| Light Intensity_CP | 1820 |
| Lighting Technology | LED |
| Lamp Connection | Hardwired |
| Lens Color | Clear |
| Lens Material | Polycarbonate |
| Lumens (LM) | 1000 |
| Mount Type | Bracket Mount |
| NAPA Part Number | 81335C |
| Number of Diodes/Bulbs | 6 |
| Number of Wires | 2 |
| Packaging Type | Standard |
| Part Number | 81335C4 |
| Plug Side One | Hardwired |
| Plug Side Two | .180 Bullet |
| Sealed/Bulb Replaceable | Sealed |
| Std Carton Qty | 1 |
| Taxonomy | Lights.Work Lights |
| Total Depth_MMT | 43 |
| Total Depth | 1.69 |
| Temp. Description | LMP-12V LED PERIMETER |
| Total Height_MMT | 63.5 |
| Total Height | 2.5 |
| Total Width_MMT | 226.06 |
| Total Width | 8.9 |
| UNSPSC/Tariff | 25172900 |
| UPC | 0735111181637 |
| VMRS | 034-006-031 |
| Voltage (VLT) | 12 |
| Weight | 1.35 |
