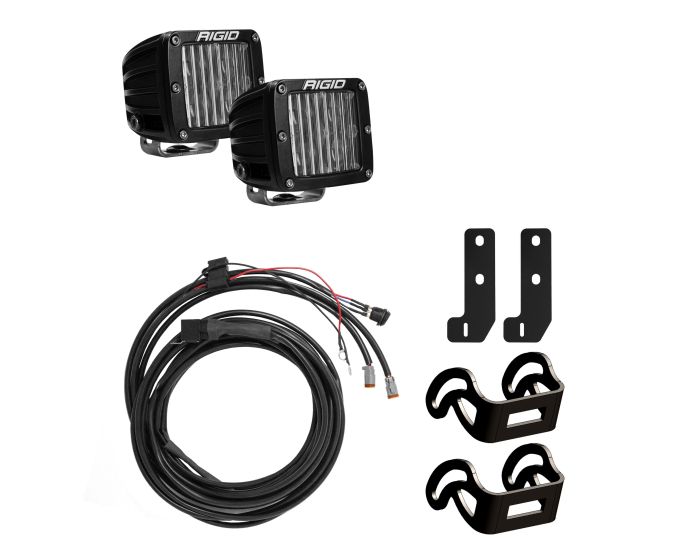

Kenworth T680 D-Series LED Fog Light, 4 Diodes, Clear Square Polycarbonate Lens, Hardwired, Deutsch Connector, 12-36V, Kit
84761
Designed as a direct replacement for 20013-2017 Kenworth T680 fog lights|Waterproof H11 to Deutsch adapter plugs directly into factory harness|SAE J583 compliant fog lights project high-intensity, crisp light|Pure white light output is closer to the color temperature of daylight, dramatically improving overall visibility|Built as a low-profile, solid-state design|Durable die-cast housing and polycarbonate lens offer a robust package to combat damage caused by shock and vibration|Low power draw|Over/Under voltage protection|Reverse polarity protection|Provides 50,000+ hour lifespan
- Hardwired
- Kit
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | Kenworth T680 D-Series LED Fog Light, 4 Diodes, Clear Square Polycarbonate Lens, Hardwired, Deutsch Connector, 12-36V, Kit |
|---|---|
| Brand | Rigid |
| Category | Fog Light |
| Warranty | Lifetime |
| Common Size | 3"x3" |
| Country of Origin | US |
| Current Major | 1.5 |
| Features & Benefits | Designed as a direct replacement for 20013-2017 Kenworth T680 fog lights|Waterproof H11 to Deutsch adapter plugs directly into factory harness|SAE J583 compliant fog lights project high-intensity, crisp light|Pure white light output is closer to the color temperature of daylight, dramatically improving overall visibility|Built as a low-profile, solid-state design|Durable die-cast housing and polycarbonate lens offer a robust package to combat damage caused by shock and vibration|Low power draw|Over/Under voltage protection|Reverse polarity protection|Provides 50,000+ hour lifespan |
| Feature Highlights | Hardwired|Kit |
| Housing Material | Aluminum |
| Itm Id | 4169874 |
| KIT (Yes/No) | Yes |
| Lens Shape | Square |
| Light Intensity_CP | 10570 |
| Lighting Technology | LED |
| Lamp Connection | Hardwired |
| Lens Color | Clear |
| Lens Height_INH | 3.2 |
| Lens Material | Polycarbonate |
| Lens Width_INH | 3.7 |
| Mount/Trim Color | Black |
| Mount/Trim Material | Steel |
| Mount Type | Bracket Mount Kit |
| Number of Diodes/Bulbs | 4 |
| Number of Wires | 2 |
| Packaging Height | 0 |
| Packaging Type | Standard |
| Part Number | 84761-4 |
| Plug Side One | Hardwired |
| Plug Side Two | Deutsch Connector |
| Sealed/Bulb Replaceable | Sealed |
| Std Carton Qty | 1 |
| Taxonomy | Lights.Fog & Driving Lights |
| Total Depth_MMT | 74.68 |
| Total Depth | 2.94 |
| Total Height_MMT | 81.03 |
| Total Height | 3.19 |
| Total Width_MMT | 81.03 |
| Total Width | 3.19 |
| UNSPSC/Tariff | 25172900 |
| UPC | 735111202349 |
| Voltage (VLT) | 12|24|36 |
