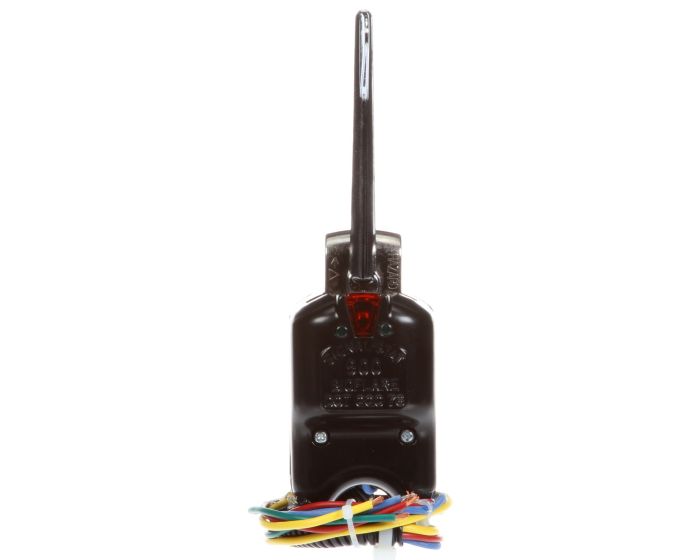

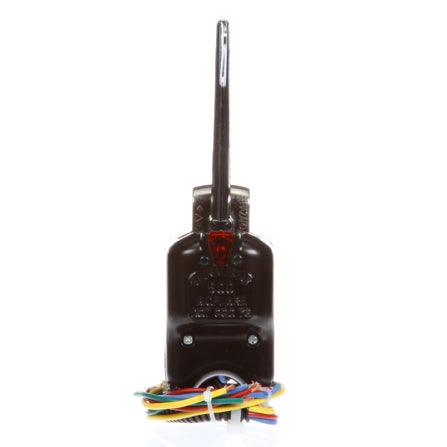

Turn Signal Switch, Black ABS

902

4 wire harness|Only used in conjunction with single function turn signal lamps|For automotive or agricultural applications|Pilot light for turn signal and hazard warning|Recommended flasher 250 series (not included)|Can be used for 24V applications by changing pilot bulb and flasher (263-4)
  • Stripped End
  • Hardwired
Brand Signal-Stat
Business Unit Truck-Lite (NA)
Catalog Family Name Alarms,Horns & Switches.Turn Signal Switches>Group 3
Category Turn Signal Switch
Country of Origin ZZ
Features & Benefits 4 wire harness|Only used in conjunction with single function turn signal lamps|For automotive or agricultural applications|Pilot light for turn signal and hazard warning|Recommended flasher 250 series (not included)|Can be used for 24V applications by changing pilot bulb and flasher (263-4)
Housing Material ABS
Itm Id 2016823
KIT (Yes/No) No
Lamp Connection Hardwired
Lamp Connection (Simplified) Hardwired
NAPA Part Number 902
Number of Wires 4
Packaging Type Standard
Part Number SS902-S
Plug Side One Hardwired
Plug Side Two Stripped End
Plug Side Two (Simplified) Stripped End
Series Signal-Stat
Std Carton Qty 1
Taxonomy Alarms,Horns & Switches.Turn Signal Switches
Temp. Description T/S Switch, Flat Back
Total Depth (INH) 0.88
Total Depth (MMT) 22.23
Total Height (INH) 2.12
Total Height (MMT) 53.72
Total Width (INH) 3.21
Total Width (MMT) 81.64
UNSPSC 39121500
UPC 724956193639
VMRS 034-003-016
Warranty 1-Year
Weight (LBR) 1.28
Wire Gauge 16
Feature Highlights Stripped End|Hardwired
Image Highlighters SS.jpg|1Year.jpg
Label 1 No
Label 2 No
Label 3 No
Show Size Chart No
