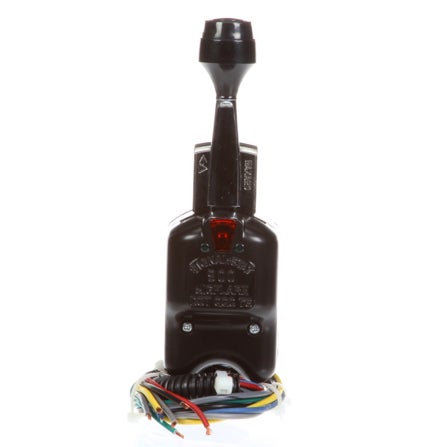

Heavy Load, Turn Signal Switch, Black Zinc
910
7 wire harness|Pilot light for turn signal and hazard warning|16 bulb capacity for hazard warning, 8 bulbs per side for turn signal flashing|Recommended flasher for 6 to 12 lamps - 252 (not included)|Recommended flasher for 12 to 16 lamps - 183D (not included)|Recommended flasher for 16 to 20 lamps 283 (not include)|Recommended switch for trucks pulling double or triple trailers and for vehicles that flash their hazard warning lamps regularly, or for prolonged periods of time
NOTE: Work Instructions can be found on the Product Attachments Tab below.
- Stripped End
- Hardwired
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | Heavy Load, Turn Signal Switch, Black Zinc |
|---|---|
| SKU | 910 |
| Brand | Signal-Stat |
| Category | Turn Signal Switch |
| Series | Signal-Stat |
| Warranty | 1-Year |
| Catalog Family Name | Alarms,Horns & Switches.Turn Signal Switches>Group 4 |
| Country of Origin | US |
| Features & Benefits | 7 wire harness|Pilot light for turn signal and hazard warning|16 bulb capacity for hazard warning, 8 bulbs per side for turn signal flashing|Recommended flasher for 6 to 12 lamps - 252 (not included)|Recommended flasher for 12 to 16 lamps - 183D (not included)|Recommended flasher for 16 to 20 lamps 283 (not include)|Recommended switch for trucks pulling double or triple trailers and for vehicles that flash their hazard warning lamps regularly, or for prolonged periods of time |
| Feature Highlights | Stripped End|Hardwired |
| Housing Material | Zinc |
| Itm Id | 2020030 |
| KIT (Yes/No) | No |
| Lamp Connection | Hardwired |
| NAPA Part Number | 910 |
| Number of Wires | 7 |
| Packaging Type | Standard |
| Part Number | SS910-S |
| Plug Side One | Hardwired |
| Plug Side Two (Simplified) | Stripped End |
| Plug Side Two | Stripped End |
| Std Carton Qty | 1 |
| Taxonomy | Alarms,Horns & Switches.Turn Signal Switches |
| Total Depth_INH | 2.88 |
| Total Depth_MMT | 73.03 |
| Temp. Description | T/S Switch, Fat Back, Heavy Lo |
| Total Height_INH | 2.13 |
| Total Height_MMT | 53.98 |
| Total Width_INH | 7.25 |
| Total Width_MMT | 184.15 |
| UNSPSC | 39121500 |
| UPC | 724956199716 |
| VMRS | 034-003-016 |
| Weight_LBR | 1.4 |
| Wire Gauge | 16 |
