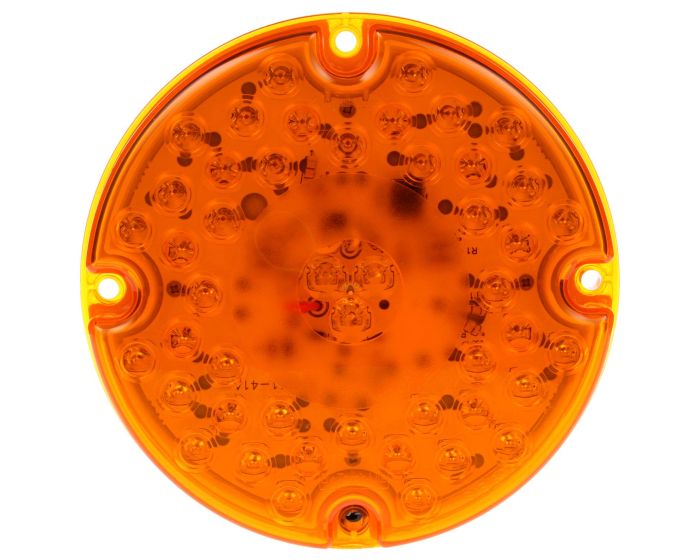

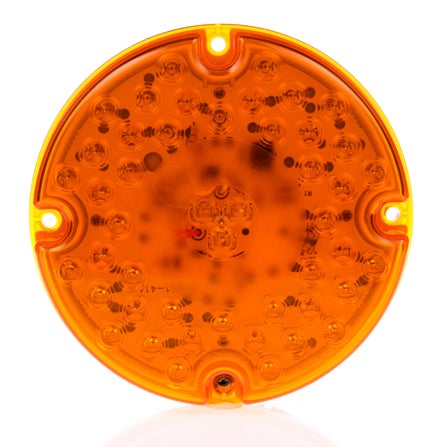

91 Series, LED, Yellow Round, 47 Diode, Rear Turn Signal, 12V, Hardwired, Packard Connector 12015792
91370Y
- Packard Connector
- Hardwired
- 12 V
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | 91 Series, LED, Yellow Round, 47 Diode, Rear Turn Signal, 12V, Hardwired, Packard Connector 12015792 |
|---|---|
| Brand | TL |
| Category | Turn Signal |
| Series | 91 Series |
| Warranty | 1-Year |
| Compliance Family | FMVSS 108|CMVSS 108|DOT|SAE |
| Common Size | 7" |
| Country of Origin | TW |
| Current Minor | 0.04 |
| Feature Highlights | Packard Connector|Hardwired|12 V |
| Housing Material | Acrylic |
| Itm Id | 3138339 |
| KIT (Yes/No) | No |
| Lens Shape | Round |
| Lighting Technology | LED |
| Lamp Connection | Hardwired |
| Lens Color | Yellow |
| Lens Height_INH | 7.03 |
| Lens Material | Acrylic |
| Lens Width_INH | 7.03 |
| Mount Type | 4 Screw |
| Number of Diodes/Bulbs | 47 |
| Number of Wires | 3 |
| Packaging Type | Standard |
| Part Number | 91370Y4 |
| Plug Side One | Hardwired |
| Plug Side Two | Packard Connector 12015792 |
| Sealed/Bulb Replaceable | Sealed |
| Std Carton Qty | 1 |
| Taxonomy | Lights.Turn Signal Lights |
| Total Depth_MMT | 33.27 |
| Total Depth | 1.31 |
| Temp. Description | Led Turn Acrylic Lamp 12v w/Co |
| Total Height_MMT | 178.56 |
| Total Height | 7.03 |
| Total Width_MMT | 178.56 |
| Total Width | 7.03 |
| UNSPSC/Tariff | 25172900 |
| UPC | 735111173977 |
| VMRS | 034-002-013 |
| Voltage (VLT) | 12 |
| Weight | 1.08 |
Currently no product available
