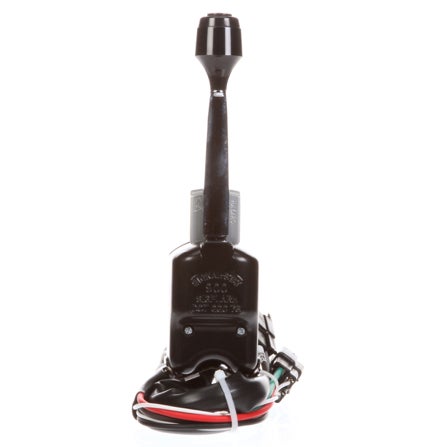

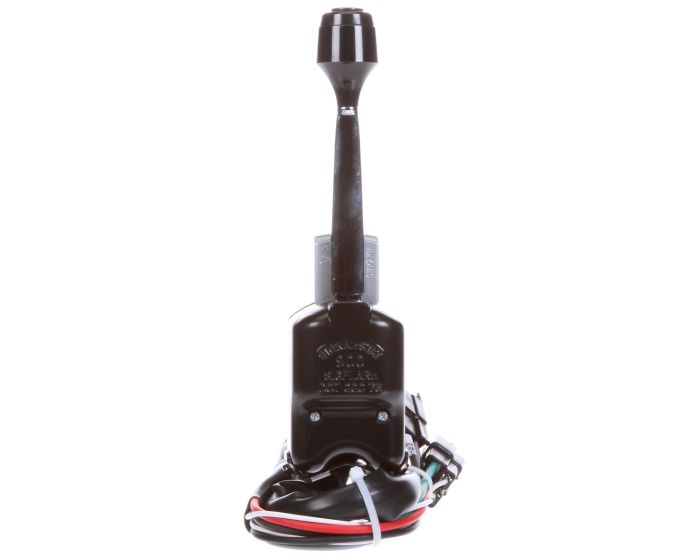

10 Wire Harness Peterbilt, Turn Signal Switch, Polycarbonate
915Y124
Peterbilt #16-06432|10 wire harness with relay|Signal arm features built-in push button high/low beam selector switch|16 bulb capacity for hazard warning, 8 bulbs per side for turn signal flashing
- Hardwired
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | 10 Wire Harness Peterbilt, Turn Signal Switch, Polycarbonate |
|---|---|
| Brand | Signal-Stat |
| Category | Turn Signal Switch |
| Series | Signal-Stat |
| Warranty | 1-Year |
| Catalog Family Name | Alarms,Horns & Switches.Turn Signal Switches>Peterbilt |
| Country of Origin | MX |
| Features & Benefits | Peterbilt #16-06432|10 wire harness with relay|Signal arm features built-in push button high/low beam selector switch|16 bulb capacity for hazard warning, 8 bulbs per side for turn signal flashing |
| Feature Highlights | Hardwired |
| Housing Material | Polycarbonate |
| Itm Id | 2021999 |
| KIT (Yes/No) | No |
| Lamp Connection | Hardwired |
| Number of Wires | 8 |
| OEM Replacement | 16-06432 |
| OEM | Peterbilt |
| Packaging Type | Standard |
| Part Number | SS915Y124 |
| Plug Side One | Hardwired |
| Plug Side Two (Simplified) | Packard Connector |
| Plug Side Two | Packard Connector 6288700|Packard Connector 2984883 |
| Std Carton Qty | 1 |
| Taxonomy | Alarms,Horns & Switches.Turn Signal Switches |
| Total Depth_INH | 2.78 |
| Total Depth_MMT | 70.61 |
| Temp. Description | OEM Switch, Peterbilt Replacem |
| Total Height_INH | 2.12 |
| Total Height_MMT | 53.85 |
| Total Width_INH | 8.6 |
| Total Width_MMT | 218.44 |
| UNSPSC | 39121500 |
| UPC | 735111163428 |
| VMRS | 034-003-016 |
| Weight_LBR | 1.69 |
| Wire Gauge | 10|12|14|18 |
