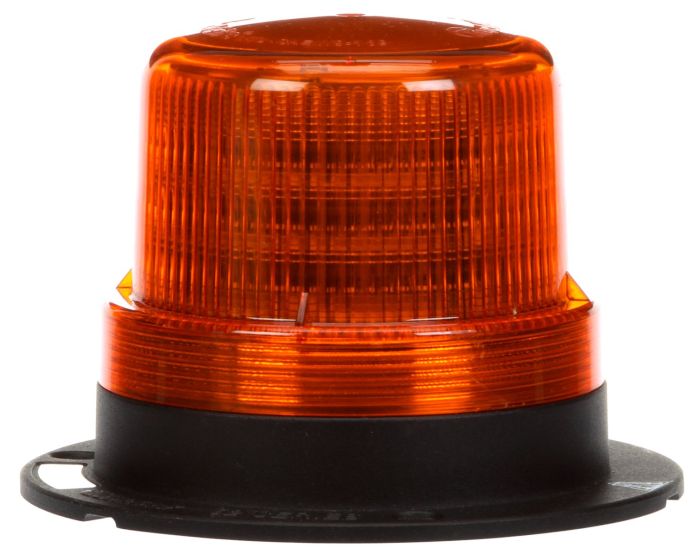

LED, Low Profile Beacon, Yellow, Permanent Mount/Pipe Mount, Class I, Hardwired, Stripped End, 12V
92564Y
US Patent #6,183,100 and 6,679,618|Developed through Truck-Lites experience in both LED Design and Heavy-Duty Warning Lighting Systems Design|Meets Class I output requirements|Optics designed specifically for LED technology, not as a gaseous discharge retrofit|Dual and quad flash patterns meet legal functions|Rugged black powder coated corrosion-resistant die-cast aluminum base|Designed for Surface Mount as well as Pipe Mount (1'' NPT pipe thread)|Electronics and Light Source are fully encapsulated in epoxy|Protected against industry-standard electrical transient per SAE J1455|Linear supply offers reduced EMI over that of gaseous discharge systems|Threaded-lens design does not require tool to replace lens|Designed without external optics to reduce maintenance and cleaning|Mounting gasket and #10 installation screws included
- Stripped End
- Hardwired
- 12 V
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | LED, Low Profile Beacon, Yellow, Permanent Mount/Pipe Mount, Class I, Hardwired, Stripped End, 12V |
|---|---|
| Brand | TL |
| Category | Beacon |
| Warranty | 5-Year |
| Country of Origin | ZZ |
| Current_AMP | 2.2 |
| Features & Benefits | US Patent #6,183,100 and 6,679,618|Developed through Truck-Lites experience in both LED Design and Heavy-Duty Warning Lighting Systems Design|Meets Class I output requirements|Optics designed specifically for LED technology, not as a gaseous discharge retrofit|Dual and quad flash patterns meet legal functions|Rugged black powder coated corrosion-resistant die-cast aluminum base|Designed for Surface Mount as well as Pipe Mount (1'' NPT pipe thread)|Electronics and Light Source are fully encapsulated in epoxy|Protected against industry-standard electrical transient per SAE J1455|Linear supply offers reduced EMI over that of gaseous discharge systems|Threaded-lens design does not require tool to replace lens|Designed without external optics to reduce maintenance and cleaning|Mounting gasket and #10 installation screws included |
| Feature Highlights | Stripped End|Hardwired|12 V |
| Housing Material | Aluminum |
| Itm Id | 3228684 |
| KIT (Yes/No) | No |
| Lens Shape | Round |
| Lighting Technology | LED |
| Lamp Connection | Hardwired |
| Lens Color | Yellow |
| Lens Material | Polycarbonate |
| Mount/Trim Color | Black |
| Mount/Trim Material | Aluminum |
| Mount Type | Permanent Mount|Pipe Mount |
| NAPA Part Number | 92564Y |
| Number of Diodes/Bulbs | 18 |
| Number of Wires | 1 |
| Packaging Type | Standard |
| Part Number | 92564Y4 |
| Plug Side One | Hardwired |
| Plug Side Two | Stripped End |
| Profile | Low Profile |
| Rotating/Strobe | Strobe |
| Sealed/Bulb Replaceable | Sealed |
| Selectable Flash Patterns (Yes/No) | No |
| Standards Met | J1455 |
| Std Carton Qty | 1 |
| Taxonomy | Lights.Beacons |
| Total Depth_MMT | 172.97 |
| Total Depth | 6.81 |
| Temp. Description | LOW PROFILE LAMP, YELLOW W/ YE |
| Total Height_MMT | 129.03 |
| Total Height | 5.08 |
| Total Width_MMT | 172.97 |
| Total Width | 6.81 |
| UNSPSC/Tariff | 39111706 |
| UPC | 0735111175742 |
| VMRS | 034-006-004 |
| Voltage (VLT) | 12 |
| Warning Class | I |
| Weight | 3.99 |
Currently no product available
WARNING: This product can expose you to chemicals including lead
and lead compounds, DEHP and bisphenol A (BPA) which are known to the
State of California to cause cancer and birth defects or other reproductive
harm. For more information go to www.p65warnings.ca.gov.

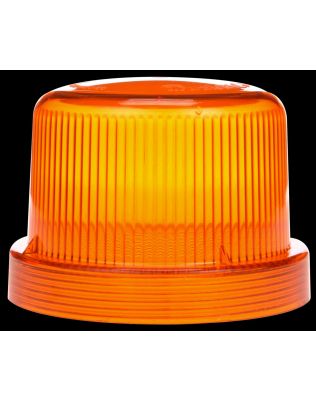

Replacement Parts / Kit Components
