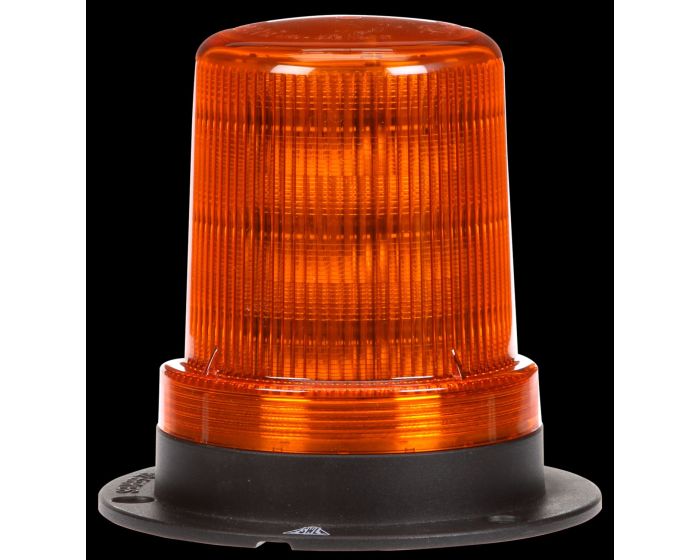

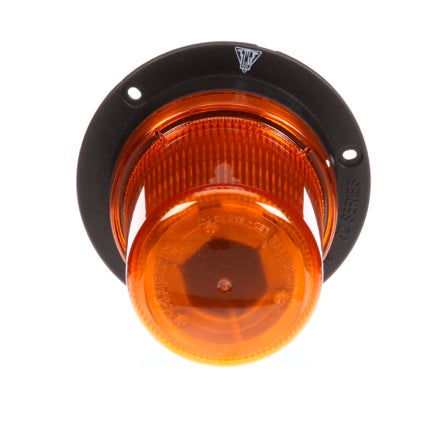

LED, Medium Profile Beacon, Yellow, Permanent Mount/Pipe Mount, Class I, Hardwired, Stripped End, 12V

92565Y

Developed through Truck-Lite experience in both LED Design and Heavy-Duty Warning Lighting Systems Design|Optics designed specifically for LED technology, not as a gaseous discharge retrofit|Additional color options excellent option for City/County Municipal, Cement Mixer, and other Heavy-Duty, Construction or Off-Road Applications|Dual and Quad Class I flash patterns meet legal functions|Rugged black powder coated corrosion-resistant die-cast aluminum base|Designed for Surface Mount as well as Pipe Mount (1NPT pipe thread)|Electronics and Light Source are fully encapsulated in epoxy to protect components from moisture damage and corrosives|Protected against industry-standard electrical transient per SAE J1455|Linear supply offers reduced EMI over that of gaseous discharge systems|Threaded-lens design does not require tool to replace lens|Designed without external optics to reduce maintenance and cleaning|Mounting gasket and #10 installation screws included|Magnetic Mount version features neodymium magnet, the strongest type of magnet, featuring up to 120 pounds of magnetic pull|Magnetic Mount constructed of high-quality aluminum covered in a protective rubber, featuring neodymium magnets with up to 120 pounds of magnetic pull|Magnetic Mount includes rubber suction material for extra insurance, reducing any risk of separation of light from contact surface|Cigarette Plug features On/Off switch with LED indicator light|5-Year Warranty
  • Stripped End
  • Hardwired
  • 12 V
Need To Order By Phone?

(800) - 562 - 5012

Product Name LED, Medium Profile Beacon, Yellow, Permanent Mount/Pipe Mount, Class I, Hardwired, Stripped End, 12V
New No
Best Sellers No
Show Size Chart No
Brand TL
Category Beacon
Warranty 5-Year
Country of Origin ZZ
Current_AMP 2.6
Features & Benefits Developed through Truck-Lite experience in both LED Design and Heavy-Duty Warning Lighting Systems Design|Optics designed specifically for LED technology, not as a gaseous discharge retrofit|Additional color options excellent option for City/County Municipal, Cement Mixer, and other Heavy-Duty, Construction or Off-Road Applications|Dual and Quad Class I flash patterns meet legal functions|Rugged black powder coated corrosion-resistant die-cast aluminum base|Designed for Surface Mount as well as Pipe Mount (1NPT pipe thread)|Electronics and Light Source are fully encapsulated in epoxy to protect components from moisture damage and corrosives|Protected against industry-standard electrical transient per SAE J1455|Linear supply offers reduced EMI over that of gaseous discharge systems|Threaded-lens design does not require tool to replace lens|Designed without external optics to reduce maintenance and cleaning|Mounting gasket and #10 installation screws included|Magnetic Mount version features neodymium magnet, the strongest type of magnet, featuring up to 120 pounds of magnetic pull|Magnetic Mount constructed of high-quality aluminum covered in a protective rubber, featuring neodymium magnets with up to 120 pounds of magnetic pull|Magnetic Mount includes rubber suction material for extra insurance, reducing any risk of separation of light from contact surface|Cigarette Plug features On/Off switch with LED indicator light|5-Year Warranty
Feature Highlights Stripped End|Hardwired|12 V
Housing Material Aluminum
Itm Id 3072771
KIT (Yes/No) No
Lens Shape Round
Lighting Technology LED
Lamp Connection Hardwired
Lamp Connection (Simplified) Hardwired
Lens Color Yellow
Lens Height_INH 5.5
Lens Material Polycarbonate
Lens Width_INH 4.95
Mount/Trim Color Black
Mount/Trim Material Aluminum
Mount Type Permanent Mount|Pipe Mount
NAPA Part Number 92565Y
Number of Diodes/Bulbs 18
Number of Wires 3
Packaging Type Standard
Part Number 92565Y4
Plug Side One Hardwired
Plug Side Two Stripped End
Profile Medium Profile
Rotating/Strobe Strobe
Sealed/Bulb Replaceable Sealed
Selectable Flash Patterns (Yes/No) No
Standards Met J845|J1455
Std Carton Qty 1
Taxonomy Lights.Beacons
Total Depth_MMT 173.23
Total Depth 6.82
Temp. Description LED Solid-State Warning Lamp,
Total Height_MMT 173.48
Total Height 6.83
Total Width_MMT 173.23
Total Width 6.82
UNSPSC/Tariff 39111706
UPC 0735111169079
VMRS 034-006-004
Voltage (VLT) 12
Warning Class I
Weight 4.67
