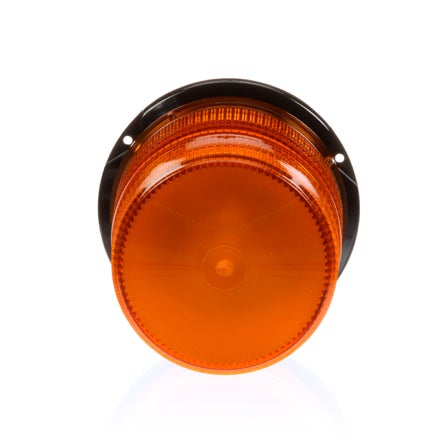

LED, Medium Profile Beacon, Amber, Permanent Mount/Pipe Mount, Hardwired, Stripped End, 12-24V
92860Y
This LED beacons feature encapsulated electronics to provide enhanced protection against dust and moisture ingress and are ideally suited to severe vibration applications. Offering a choice of 11 flash patterns and 12-24 VDC operation, these heavy duty beacons also feature a robust aluminum base. A long maintenance free service life and low amp draw make this beacon a cost effective choice for new installations or for replacing strobe or rotating beacons with the latest technology to eliminate ongoing maintenance.
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | LED, Medium Profile Beacon, Amber, Permanent Mount/Pipe Mount, Hardwired, Stripped End, 12-24V |
|---|---|
| Brand | TL |
| Category | Beacon |
| Warranty | 5-Year |
| Beacon Frequency (FPM) | 80 |
| Current_AMP | 4.1A Max |
| Flashing Patterns | 11 |
| Housing Material | Aluminum |
| Itm Id | 3828997 |
| KIT (Yes/No) | No |
| Lens Shape | Round |
| Lighting Technology | LED |
| Lamp Connection | Stripped Ends |
| Lens Color | Amber |
| Lens Height_INH | 5.88 |
| Lens Material | Polycarbonate |
| Lens Width_INH | 5.5 |
| Mount/Trim Color | Black |
| Mount/Trim Material | Aluminum |
| Mount Type | 3 Bolt Flange |
| NAPA Part Number | 92860Y |
| Number of Diodes/Bulbs | 4 |
| Number of Wires | 3 |
| Packaging Type | Standard |
| Part Number | 92860Y |
| Plug Side One | Hardwired |
| Plug Side Two | Stripped End |
| Profile | Medium Profile |
| Rotating/Strobe | Strobe |
| Sealed/Bulb Replaceable | Sealed |
| Selectable Flash Patterns (Yes/No) | Yes |
| Standards Met | CE|R10|J845 |
| Std Carton Qty | 1 |
| Taxonomy | Lights.Beacons |
| Total Depth_MMT | 165 |
| Total Depth | 6.5 |
| Total Height_MMT | 172 |
| Total Height | 6.8 |
| Total Width_MMT | 165 |
| Total Width | 6.5 |
| UNSPSC/Tariff | 39111706 |
| UPC | 0735111185123 |
| VMRS | 034-006-004 |
| Voltage (VLT) | 12|24 |
| Warning Class | I |
| Weight | 2.64 |
