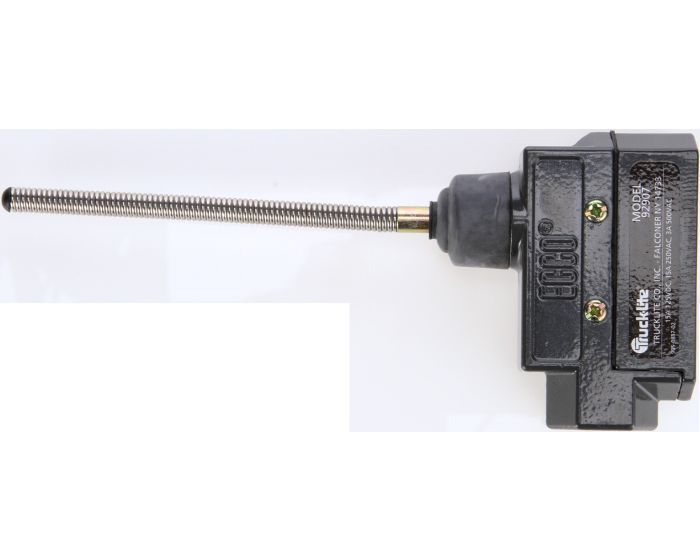

Product Name | Water Resistant Back-Up Alarm Switch, Bracket, 3 Screw Terminal 12-36V |
---|---|
Brand | TL |
Category | Back-Up Alarm Switch |
Warranty | 1-Year |
Catalog Family Name | Alarms,Horns & Switches.Back-Up Alarms>TL>Bracket Mount |
Country of Origin | TW |
Current_AMP | 15 |
Features & Benefits | A water-resistant switch with a 5 amp rating|Arm operates with a full 360 movement|For use when a back-up light circuit is not available to activate the alarm|For increased water resistance, an optional 3/8" ID watertight compression fitting is available and will accommodate a 2 conductor round cable|UL and CSA approved |
Housing Material | Zinc |
Itm Id | 2723085 |
KIT (Yes/No) | No |
Lamp Connection | 3 Screw Terminal |
Lamp Connection (Simplified) | Screw Terminal |
NAPA Part Number | 92907 |
Packaging Type | Standard |
Part Number | 92907-4 |
Std Carton Qty | 1 |
Taxonomy | Alarms,Horns & Switches.Back-Up Alarms |
Total Depth_INH | 3.04 |
Total Depth_MMT | 77.22 |
Temp. Description | B/U ALARM WATER RESISTANT 5 AM |
Total Height_INH | 6.88 |
Total Height_MMT | 174.63 |
Total Width_INH | 1 |
Total Width_MMT | 25.4 |
UNSPSC | 39000000 |
UPC | 7.35111E+11 |
VMRS | 054-002-000 |
Voltage (VLT) | 12|24|36 |
Weight_LBR | 0.92 |
