Back-Up Alarm Switch, Bracket, 3 Screw Terminal
92925
Back-Up Alarm Switch, Bracket, 3 Screw Terminal
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | Back-Up Alarm Switch, Bracket, 3 Screw Terminal |
|---|---|
| SKU | 92925 |
| Brand | TL |
| Category | Back-Up Alarm Switch |
| Warranty | 1-Year |
| Catalog Family Name | Alarms,Horns & Switches.Back-Up Alarms>TL>Bracket Mount |
| Country of Origin | ZZ |
| Current_AMP | 5 |
| Features & Benefits | A water-resistant switch with a 5 amp rating|Arm operates with a full 360 degree movement|For use when a back-up light circuit is not available to activate the alarm|For increased water resistance, an optional 3/8{REPSTR} ID watertight compression fitting is available and will accommodate a 2 conductor round cable|UL and CSA approved |
| Housing Material | Plastic |
| Itm Id | 2294321 |
| KIT (Yes/No) | No |
| Lamp Connection | 3 Screw Terminal |
| Lamp Connection (Simplified) | Screw Terminal |
| NAPA Part Number | 92925 |
| Packaging Type | Standard |
| Part Number | 92925-4 |
| Std Carton Qty | 1 |
| Steam Cleanable (Yes/No) | No |
| Taxonomy | Alarms,Horns & Switches.Back-Up Alarms |

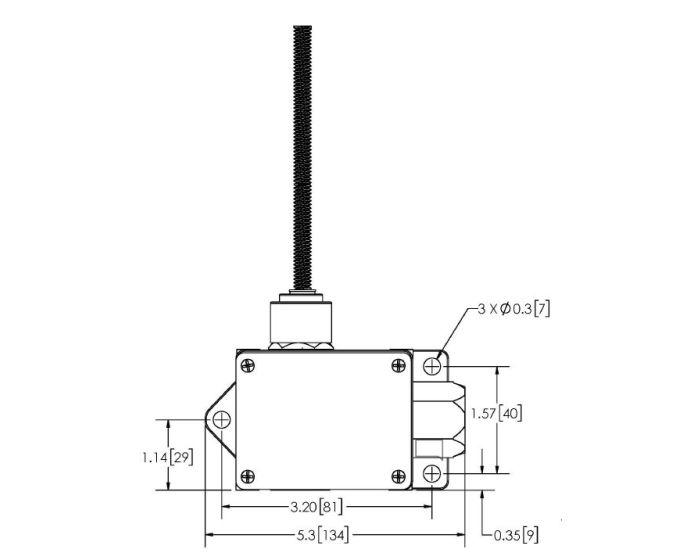

| Total Depth_INH | 2.89 |
| Total Depth_MMT | 73.41 |
| Temp. Description | B/U ALARM SWITCH |
| Total Height_INH | 8.26 |
| Total Height_MMT | 209.8 |
| Total Width_INH | 1.47 |
| Total Width_MMT | 37.34 |
| UNSPSC | 39000000 |
| UPC | 7.35111E+11 |
| VMRS | 054-002-000 |
| Weight_LBR | 0.58 |
