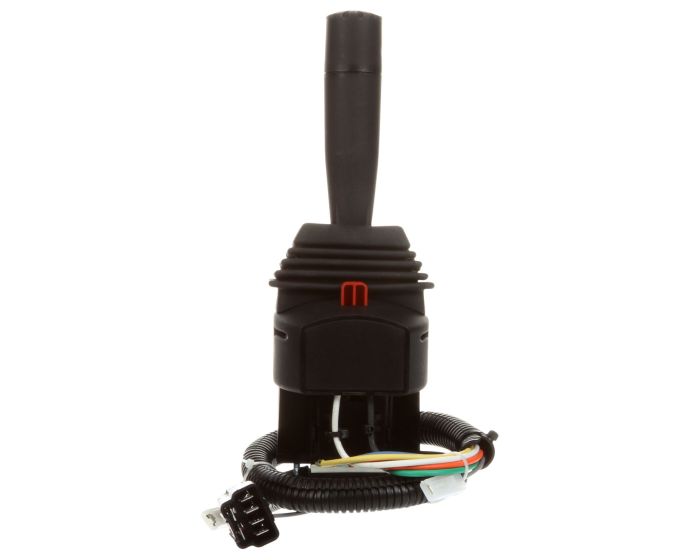

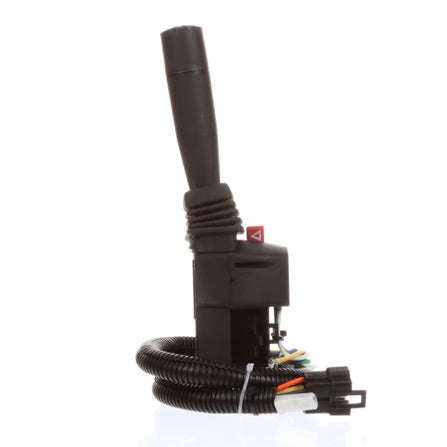

Navistar, Turn Signal Switch, Nylon, 2002874C91/3566935C91
962Y100
Navistar #2002874C91 and 3566935C91|surpasses SAE J589 and J910 standards for turn and hazard functions|Improved light weight, high impact housing and handle|Capable of flashing 16 lamps in hazard mode, 8 lamps per side for turn signal flashing|Features a sealed boot to eliminate dust intrusion|Brake overrides hazard function lights when brake pedal is depressed
- Hardwired
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | Navistar, Turn Signal Switch, Nylon, 2002874C91/3566935C91 |
|---|---|
| SKU | 962Y100 |
| Brand | Signal-Stat |
| Category | Turn Signal Switch |
| Series | Signal-Stat |
| Warranty | 1-Year |
| Catalog Family Name | Alarms,Horns & Switches.Turn Signal Switches>Navistar |
| Country of Origin | US |
| Features & Benefits | Navistar #2002874C91 and 3566935C91|surpasses SAE J589 and J910 standards for turn and hazard functions|Improved light weight, high impact housing and handle|Capable of flashing 16 lamps in hazard mode, 8 lamps per side for turn signal flashing|Features a sealed boot to eliminate dust intrusion|Brake overrides hazard function lights when brake pedal is depressed |
| Feature Highlights | Hardwired |
| Housing Material | Nylon |
| Itm Id | 2027320 |
| KIT (Yes/No) | No |
| Lamp Connection | Hardwired |
| NAPA Part Number | 962Y100 |
| Number of Wires | 15 |
| OEM Replacement | 2002874C91|3566935C91 |
| OEM | Navistar |
| Packaging Type | Standard |
| Part Number | SS962Y100-S |
| Plug Side One | Hardwired |
| Plug Side Two (Simplified) | Packard Connector |
| Plug Side Two | 6 Way Packard Connector 06288700|Packard Connector 2973778|Packard Connector 02973778|Packard Connector 08905650 |
| Std Carton Qty | 1 |
| Taxonomy | Alarms,Horns & Switches.Turn Signal Switches |
| Total Depth_INH | 3.03 |
| Total Depth_MMT | 76.96 |
| Temp. Description | OEM Switches Navistar Replacem |
| Total Height_INH | 8.87 |
| Total Height_MMT | 225.3 |
| Total Width_INH | 3.03 |
| Total Width_MMT | 76.96 |
| UNSPSC | 39121500 |
| UPC | 735111154013 |
| VMRS | 034-003-016 |
| Weight_LBR | 1 |
| Wire Gauge | 14|18 |
