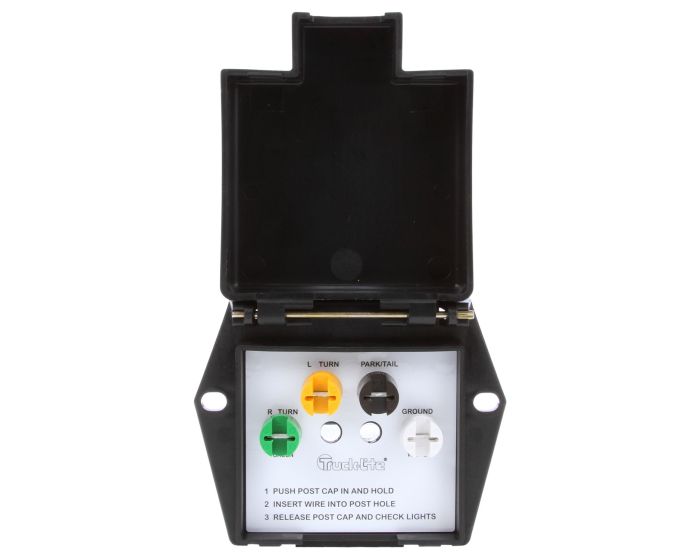

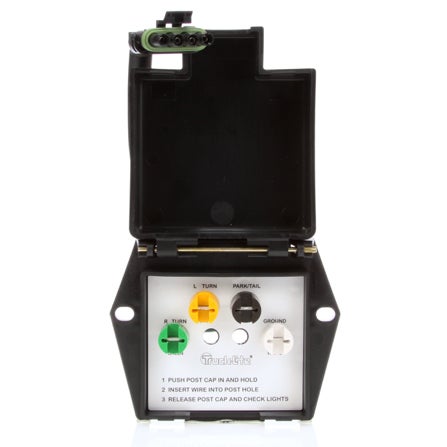

Quick Connect, 1-Port, 4 Terminal, Black Nylon, Surface Mount, Junction Box
96511
Provides a secure connection to consumer trailers through a stripped wire connection or a stripped wire connection with a standard 4-pin flat molded connector|Sealed connector to the main power harness in the truck|Adhesive-lined heat shrinks protect the main harness connection to the box|Quick connect box can be easily replaced if necessary|The hinge pin has been designed to fit tightly into the hinge, keeping the lid on the box and reducing the chance for water to get into the connection terminals|The black color of the box will allow it the blend into the rear bumper mounting location|Easily adaptable for trailers, box trucks, retail vehicles, and box vans with a hitch set-up|Mounting holes are in the same locations the current Phillips boxes|1/4" bolt used to mount the box
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | Quick Connect, 1-Port, 4 Terminal, Black Nylon, Surface Mount, Junction Box |
|---|---|
| Brand | TL |
| Category | Junction Box |
| Warranty | 1-Year |
| Country of Origin | US |
| Features & Benefits | Provides a secure connection to consumer trailers through a stripped wire connection or a stripped wire connection with a standard 4-pin flat molded connector|Sealed connector to the main power harness in the truck|Adhesive-lined heat shrinks protect the main harness connection to the box|Quick connect box can be easily replaced if necessary|The hinge pin has been designed to fit tightly into the hinge, keeping the lid on the box and reducing the chance for water to get into the connection terminals|The black color of the box will allow it the blend into the rear bumper mounting location|Easily adaptable for trailers, box trucks, retail vehicles, and box vans with a hitch set-up|Mounting holes are in the same locations the current Phillips boxes|1/4" bolt used to mount the box |
| Housing Color | Black |
| Housing Material | Nylon |
| Itm Id | 3214848 |
| KIT (Yes/No) | No |
| Mounting Connector Diameter_INH | 0.275 |
| Mount Type | Surface Mount |
| NAPA Part Number | 96511 |
| Number of Ports | 1 |
| Number of Terminal Connections | 4 |
| Packaging Type | Standard |
| Part Number | 96511-4 |
| Std Carton Qty | 1 |
| Taxonomy | Harness Systems & Wiring.Junction Boxes |
| Total Depth_MMT | 41.66 |
| Total Depth | 1.64 |
| Temp. Description | Quick Connect Box w/out Boat M |
| Total Height_MMT | 100.08 |
| Total Height | 3.94 |
| Total Width_MMT | 122.43 |
| Total Width | 4.82 |
| UNSPSC/Tariff | 39000000 |
| UPC | 735111175377 |
| VMRS | 034-002-013 |
| Weight | 0.58 |
