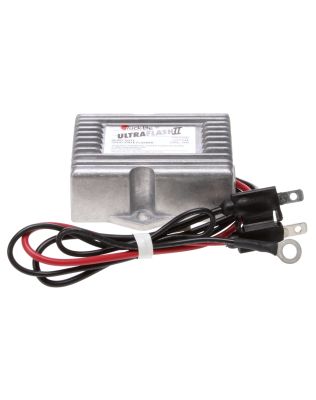

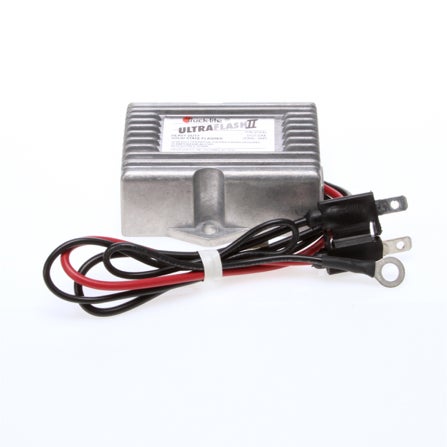

Heavy-Duty Solid-State, Aluminum Flasher Module, 90fpm, Audible, 85 DB, 12-24V, Hardwired, Bi-Polar Plug/Ring Terminal
97232
ULTRA FLASH II|Solid-state electronics are sealed in polyurethane for moisture and corrosion protection|Surface mounts with two 1/2"-6 pan head screws at 212" centers or with two 4" cable ties (both included)|Protects against short circuit overloads with a self-resetting feature|Works with LED or incandescent lamps on 12V or 24V electrical systems|97231, 97232 and 97233 rated for loads below 25 amps or 12,-32 cp bulbs|97201 rated for loads below 17 amps per channel or 8-32/3 cp bulbs|Optional remote wiring requires 12" jumper wire, 94954|97231, 97232 and 97333 feature folding bi-polar plug with 11" leads for reverse polarity operation|97201 features three 1/4" tabs and one 1/4" ring with heat shrink tubing and 12" leads|97201 used for wig/wag system|For interior/cab use only|Do not expose to moisture or liquid
- Hardwired
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | Heavy-Duty Solid-State, Aluminum Flasher Module, 90fpm, Audible, 85 DB, 12-24V, Hardwired, Bi-Polar Plug/Ring Terminal |
|---|---|
| Brand | TL |
| Category | Flasher Module |
| Warranty | 5-Year |
| Common Root | 97232 |
| Country of Origin | CA |
| Features & Benefits | ULTRA FLASH II|Solid-state electronics are sealed in polyurethane for moisture and corrosion protection|Surface mounts with two 1/2"-6 pan head screws at 212" centers or with two 4" cable ties (both included)|Protects against short circuit overloads with a self-resetting feature|Works with LED or incandescent lamps on 12V or 24V electrical systems|97231, 97232 and 97233 rated for loads below 25 amps or 12,-32 cp bulbs|97201 rated for loads below 17 amps per channel or 8-32/3 cp bulbs|Optional remote wiring requires 12" jumper wire, 94954|97231, 97232 and 97333 feature folding bi-polar plug with 11" leads for reverse polarity operation|97201 features three 1/4" tabs and one 1/4" ring with heat shrink tubing and 12" leads|97201 used for wig/wag system|For interior/cab use only|Do not expose to moisture or liquid |
| Feature Highlights | Hardwired |
| Flasher Ampere Capacity | FMVSS 108|SAE |
| Housing Material | Aluminum |
| Itm Id | 2325466 |
| KIT (Yes/No) | No |
| Lamp Connection | Hardwired |
| Mount Type | 2 Screw |
| NAPA Part Number | 97232 |
| NSN | FMVSS 108|SAE |
| Number of Wires | 3 |
| Packaging Type | Standard |
| Part Number | 97232-4 |
| Plug Side One | Hardwired |
| Plug Side Two | Bi-Polar Plug|Ring Terminal |
| Std Carton Qty | 1 |
| Taxonomy | Lights.Flasher Modules |
| Total Depth_MMT | 67.56 |
| Total Depth | 2.66 |
| Temp. Description | ULTRA FLASH II W/Audible Signa |
| Total Height_MMT | 33.53 |
| Total Height | 1.32 |
| Total Width_MMT | 79.25 |
| Total Width | 3.12 |
| UNSPSC/Tariff | 39000000 |
| UPC | 7.35111E+11 |
| VMRS | 034-003-018 |
| Voltage (VLT) | 12|24 |
| Weight | 0.75 |
