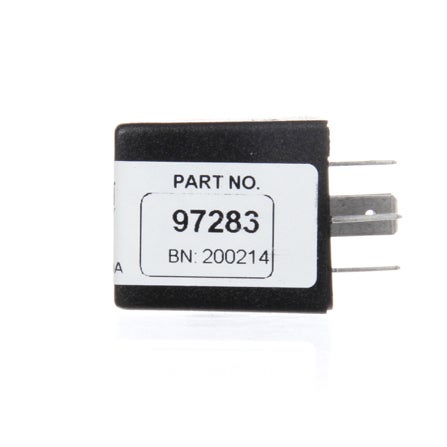

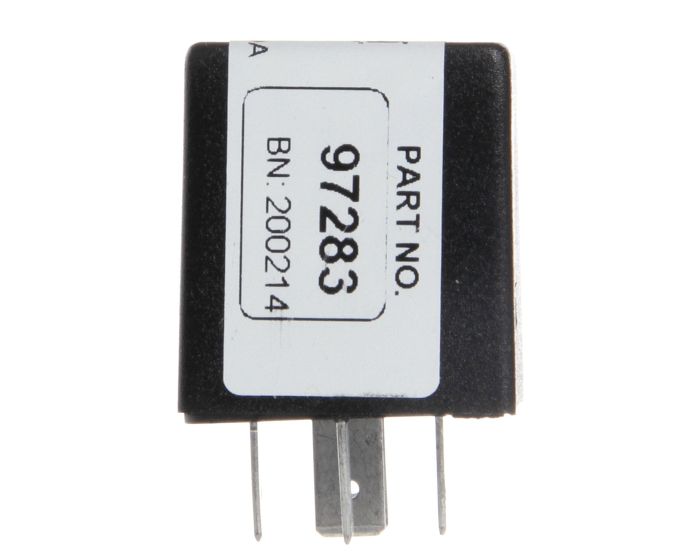

Heavy-Duty Solid-State, Plastic Flasher Module, 12V, 5 Blade Terminals

97283

Maintains normal flash rate when used to flash LED lamps|Simple installation using existing plug footprint|Heavy-duty solid state circuitry|Long lasting service life means lower maintenance costs|Designed for use with low current LED lamps|Non audible|Compatible with trailer tow packages|5 pin configuration for turn and hazard flashing|5 amp maximum per output|Conforms to DOT FMVSS 108, SAE J590 and J945
  • 12 V
Need To Order By Phone?

(800) - 562 - 5012

Product Name Heavy-Duty Solid-State, Plastic Flasher Module, 12V, 5 Blade Terminals
Brand TL
Category Flasher Module
Warranty 1-Year
Country of Origin CA
Features & Benefits Maintains normal flash rate when used to flash LED lamps|Simple installation using existing plug footprint|Heavy-duty solid state circuitry|Long lasting service life means lower maintenance costs|Designed for use with low current LED lamps|Non audible|Compatible with trailer tow packages|5 pin configuration for turn and hazard flashing|5 amp maximum per output|Conforms to DOT FMVSS 108, SAE J590 and J945
Feature Highlights 12 V
Flasher Ampere Capacity FMVSS 108|DOT|SAE
Housing Material Plastic
Itm Id 2326514
KIT (Yes/No) No
Lamp Connection 5 Blade Terminal
NAPA Part Number 97283
NSN FMVSS 108|DOT|SAE
Packaging Type Standard
Part Number 97283-4
Std Carton Qty 1
Taxonomy Lights.Flasher Modules
Total Depth_MMT 30.23
Total Depth 1.19
Temp. Description LED Flasher- Ford F Series
Total Height_MMT 30.23
Total Height 1.19
Total Width_MMT 34.04
Total Width 1.34
UNSPSC/Tariff 39000000
UPC 735111132899
VMRS 034-003-018
Voltage (VLT) 12
Weight 0.15
