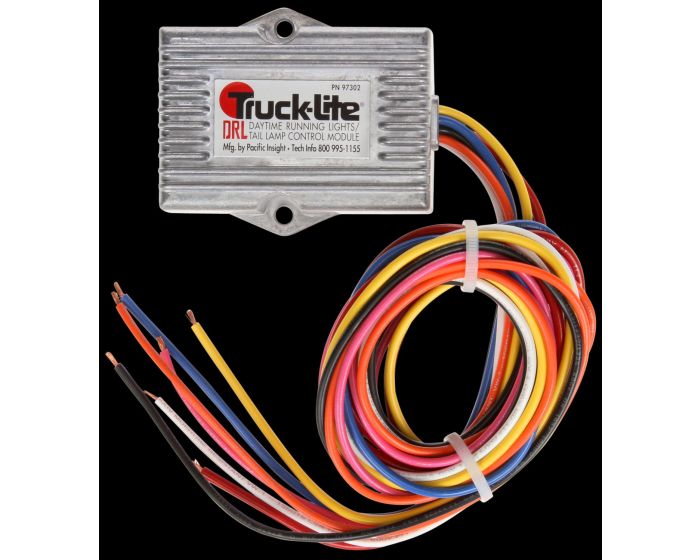

12V, DRL System, Metal Housing, Hardwired, Blunt Cut

97302

Operates low beam headlights at reduced intensity (75%) for prolonged lamp life|Unit features 15-second "time-in" delay and tail/ marker lamp activation|Park brake disable feature locks out system when parking brake is engaged|Electronics are sealed in epoxy for protection and are short circuit protected|Exceeds GM and Ford's electrical, environmental, RFI and EMI specifications|Meets or exceeds SAE, NHTSA and CSA guidelines

Be the first to review this product

Need To Order By Phone?

Product Name	12V, DRL System, Metal Housing, Hardwired, Blunt Cut
Brand	TL
Category	DRL System
Warranty	1-Year
Country of Origin	CA
Features & Benefits	Operates low beam headlights at reduced intensity (75%) for prolonged lamp life\|Unit features 15-second "time-in" delay and tail/ marker lamp activation\|Park brake disable feature locks out system when parking brake is engaged\|Electronics are sealed in epoxy for protection and are short circuit protected\|Exceeds GM and Ford's electrical, environmental, RFI and EMI specifications\|Meets or exceeds SAE, NHTSA and CSA guidelines
Housing Material	Steel
Itm Id	2326733
KIT (Yes/No)	No
Lamp Connection	Hardwired
NAPA Part Number	97302
Number of Wires	7
Packaging Type	Standard
Part Number	97302-4
Plug Side One	Hardwired
Plug Side Two	Blunt Cut
Std Carton Qty	1
Taxonomy	Lights.Relays
Total Depth_MMT	67.56
Total Depth	2.66
Temp. Description	Heavy Duty DRL System
Total Height_MMT	29.72
Total Height	1.17
Total Width_MMT	79.25
Total Width	3.12
UNSPSC/Tariff	39121500
UPC	735111035718
VMRS	034-001-027
Voltage (VLT)	12
Weight	2.6
