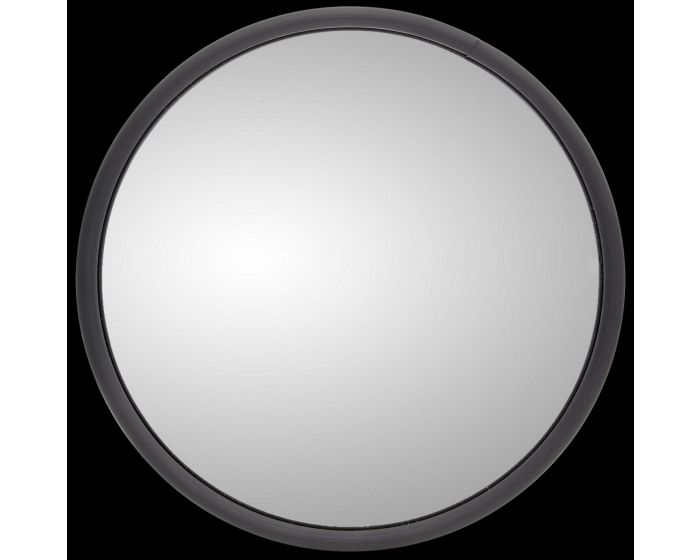

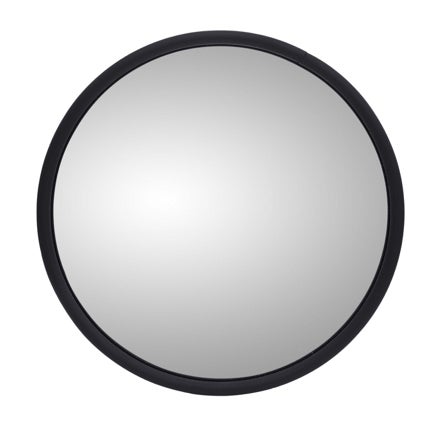

Heated, 8.5 in., Black Steel Convex Mirror, Round, Universal Mount
97615
Offset mounting stud|Includes ''L'' bracket|25 amps 12 VDC only|60" wire length (can use switch #102 or #132)|Mounting: 5/6'' female threaded adjustable ball stud with 1/2'' bolt|Replaces Signal-Stat 7078/7079/7091
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | Heated, 8.5 in., Black Steel Convex Mirror, Round, Universal Mount |
|---|---|
| Brand | TL |
| Category | Convex Mirror |
| Warranty | 1-Year |
| Common Size | 8.5" |
| Country of Origin | TW |
| Current_AMP | 2.5 |
| Features & Benefits | Offset mounting stud|Includes ''L'' bracket|25 amps 12 VDC only|60" wire length (can use switch #102 or #132)|Mounting: 5/6'' female threaded adjustable ball stud with 1/2'' bolt|Replaces Signal-Stat 7078/7079/7091 |
| Housing Color | Black |
| Housing Material | Steel |
| Itm Id | 2327761 |
| KIT (Yes/No) | No |
| Mirror Connection | Hardwired |
| Mirror Height_INH | 8.5 |
| Mirror Shape | Round |
| Mirror Width_INH | 8.5 |
| Mounting Bracket Type | L Bracket |
| Mounting Connector Diameter_INH | 0.313 |
| Mounting Connector Type | Ball Stud & Mount |
| Mounting Location | Universal |
| NAPA Part Number | 97615 |
| Number of Mirrors | 1 |
| Number of Wires | 2 |
| Packaging Type | Standard |
| Part Number | 97615-4 |
| Plug Side One | Hardwired |
| Plug Side Two (Simplified) | Stripped End |
| Plug Side Two | Stripped End |
| Std Carton Qty | 1 |
| Taxonomy | Mirrors & Mirror Brackets.Convex Mirrors |
| Total Depth_MMT | 44.45 |
| Total Depth | 1.75 |
| Temp. Description | Medium Convex Mirror Head Offs |
| Total Height Max_INH | 8.5 |
| Total Height Max_MMT | 216 |
| Total Width_MMT | 216 |
| Total Width | 8.5 |
| UNSPSC/Tariff | 25172604 |
| UPC | 7.35111E+11 |
| VMRS | 002-050-334 |
| Voltage (VLT) | 12 |
| Weight | 2.56 |
