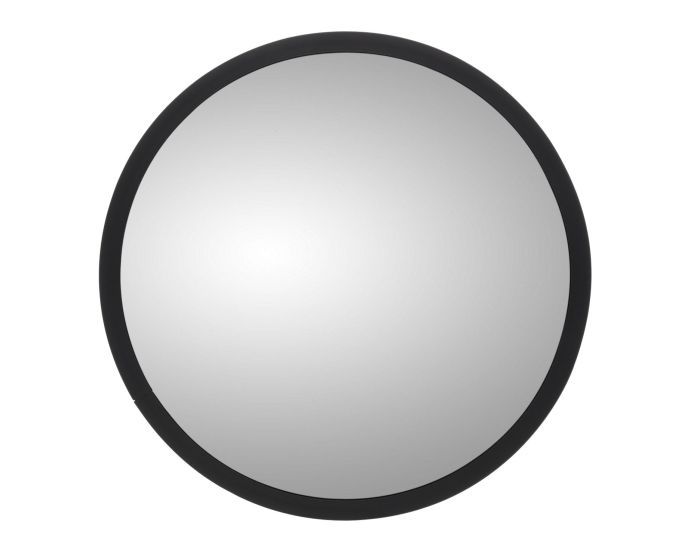

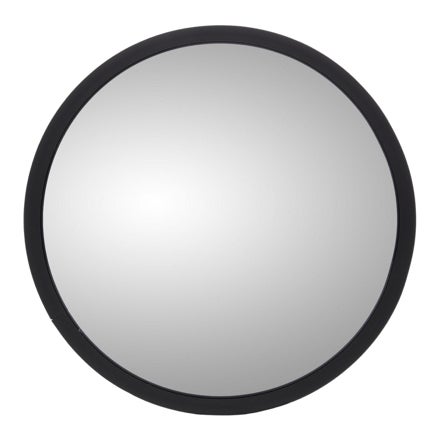

Assembly, 8 in., White Stainless Steel Convex Mirror, Round, Universal Mount
97665
Universal tripod bracket mounts easily to most Ford, Chevy and Dodge Vans|Assembly includes 8" mirror head, tripod bracket, stainless steel hardware and fasteners|Primarily used for rear vision when backing up vehicle|5/16" adjustable female ball stud and mount|Replaces Signal-Stat 7770/7771
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | Assembly, 8 in., White Stainless Steel Convex Mirror, Round, Universal Mount |
|---|---|
| SKU | 97665 |
| Brand | TL |
| Category | Convex Mirror |
| Warranty | 1-Year |
| Common Size | 8" |
| Country of Origin | ZZ |
| Features & Benefits | Universal tripod bracket mounts easily to most Ford, Chevy and Dodge Vans|Assembly includes 8" mirror head, tripod bracket, stainless steel hardware and fasteners|Primarily used for rear vision when backing up vehicle|5/16" adjustable female ball stud and mount|Replaces Signal-Stat 7770/7771 |
| Housing Color | White |
| Housing Material | Stainless Steel |
| Itm Id | 2329088 |
| KIT (Yes/No) | No |
| Mirror Height_INH | 8.5 |
| Mirror Shape | Round |
| Mirror Width_INH | 8.5 |
| Mounting Bracket Type | Tripod Bracket |
| Mounting Connector Diameter_INH | 0.313 |
| Mounting Connector Type | Ball Stud & Mount |
| Mounting Location | Universal |
| NAPA Part Number | 97665 |
| Number of Mirrors | 1 |
| Packaging Type | Standard |
| Part Number | 97665-4 |
| Std Carton Qty | 1 |
| Taxonomy | Mirrors & Mirror Brackets.Convex Mirrors |
| Total Depth_MMT | 212.85 |
| Total Depth | 8.38 |
| Temp. Description | Passenger and Cargo Van Assy P |
| Total Height Max_INH | 13.25 |
| Total Height Max_MMT | 336.55 |
| Total Width_MMT | 431.8 |
| Total Width | 17 |
| UNSPSC/Tariff | 25172604 |
| UPC | 7.35111E+11 |
| VMRS | 002-050-334 |
| Weight | 3.5 |
Currently no product available
WARNING: This product can expose you to chemicals including lead
and lead compounds, DEHP and bisphenol A (BPA) which are known to the
State of California to cause cancer and birth defects or other reproductive
harm. For more information go to www.p65warnings.ca.gov.
Replacement Parts / Kit Components
