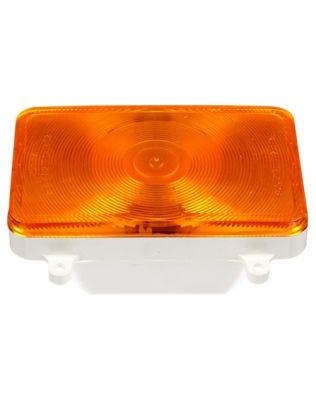

Incandescent, Yellow Rectangular, 1 Bulb, Front/Park/Turn, 4 Screw, 12V, Packard Connector 6288471, Bulk

07080-3

Watertight lamp mates withPackard connector|Recess mounts using two screws at 30" centers and two screws at 42" centers|12V lamps mate with PE Connector 62884715
  • No Plug
  • Bulk
  • 12 V
Brand TL
Business Unit Truck-Lite (NA)
Category Front/Park/Turn
Common Root 7080
Common Size 4"x6"
Compliance Family FMVSS 108|CMVSS 108|DOT|SAE
Country of Origin ZZ
Current Major 2.1
Current Minor 0.48
Diamond Shell (Yes/No) No
Features & Benefits Watertight lamp mates withPackard connector|Recess mounts using two screws at 30" centers and two screws at 42" centers|12V lamps mate with PE Connector 62884715
Housing Material Polycarbonate
Itm Id 2034124
KIT (Yes/No) No
Lamp Connection Packard Connector 6288471
Lamp Connection (Simplified) Packard Connector
Lens Color Yellow
Lens Height (INH) 4.75
Lens Material Polycarbonate
Lens Shape Rectangular
Lens Width (INH) 6.46
Lighting Technology Incandescent
Mount Type 4 Screw
Mount/Trim Color Yellow
Mount/Trim Material Polycarbonate
NAPA Part Number 07080-3
Number of Diodes/Bulbs 1
Number of Wires 3
Packaging Type Bulk
Part Number 07080-3
Plug Side One No Plug
Plug Side Two No Plug
Sealed/Bulb Replaceable Sealed
Standards Met I6|P|P2
Std Carton Qty 36
Taxonomy Lights.Front/Park/Turn Lights
Temp. Description Rectangular F/P/T, Bulk
Total Depth 2.03
Total Depth (MMT) 51.56
Total Height 5.22
Total Height (MMT) 132.59
Total Width 6.46
Total Width (MMT) 164.08
UNSPSC/Tariff 25172900
UPC 735111047933
VMRS 034-003-057
Voltage (VLT) 12
Warranty 1-Year
Weight 25
Feature Highlights No Plug|Bulk|12 V
