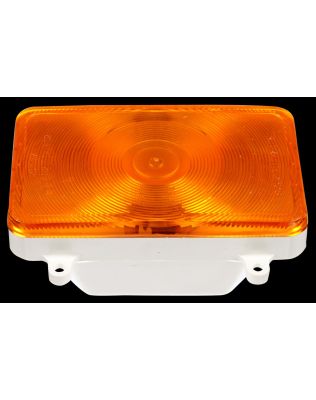

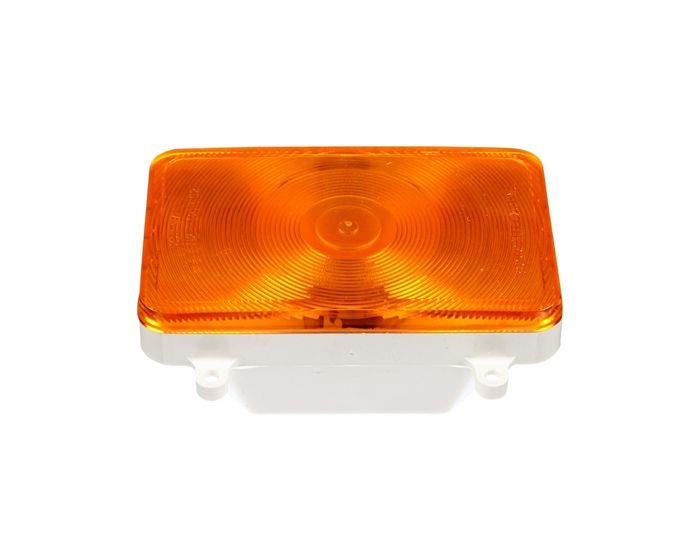

Incandescent, Yellow Rectangular, 1 Bulb, Front/Park/Turn, 4 Screw, 12V, Packard Connector 6288471

07080

Watertight lamp mates withPackard connector|Recess mounts using two screws at 30" centers and two screws at 42" centers|12V lamps mate with PE Connector 62884715
  • No Plug
  • 12 V
Brand TL
Business Unit Truck-Lite (NA)
Category Front/Park/Turn
Common Root 7080
Common Size 4"x6"
Compliance Family FMVSS 108|CMVSS 108|DOT|SAE
Country of Origin ZZ
Current Major 2.1
Current Minor 0.48
Diamond Shell (Yes/No) No
Features & Benefits Watertight lamp mates withPackard connector|Recess mounts using two screws at 30" centers and two screws at 42" centers|12V lamps mate with PE Connector 62884715
Housing Material Polycarbonate
Itm Id 2034132
KIT (Yes/No) No
Lamp Connection Packard Connector 6288471
Lamp Connection (Simplified) Packard Connector
Lens Color Yellow
Lens Height (INH) 4.75
Lens Material Polycarbonate
Lens Shape Rectangular
Lens Width (INH) 6.46
Lighting Technology Incandescent
Mount Type 4 Screw
Mount/Trim Color Yellow
Mount/Trim Material Polycarbonate
NAPA Part Number 7080
Number of Diodes/Bulbs 1
Number of Wires 3
Packaging Type Standard
Part Number 07080-4
Plug Side One No Plug
Plug Side Two No Plug
Sealed/Bulb Replaceable Sealed
Standards Met I6|P|P2
Std Carton Qty 1
Taxonomy Lights.Front/Park/Turn Lights
Temp. Description RECTANGULAR F/P/T
Total Depth 2.03
Total Depth (MMT) 51.56
Total Height 5.22
Total Height (MMT) 132.59
Total Width 6.46
Total Width (MMT) 164.08
UNSPSC/Tariff 25172900
UPC 735111009511
VMRS 034-003-057
Voltage (VLT) 12
Warranty 1-Year
Weight 0.8
Feature Highlights No Plug|12 V
Image Highlighters TL.jpg|Incandescent.jpg|1Year.jpg
Label 1 No
Label 2 No
Label 3 No
Show Size Chart No
