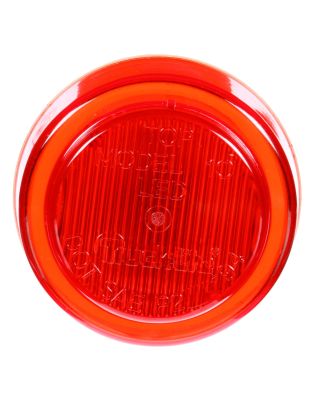

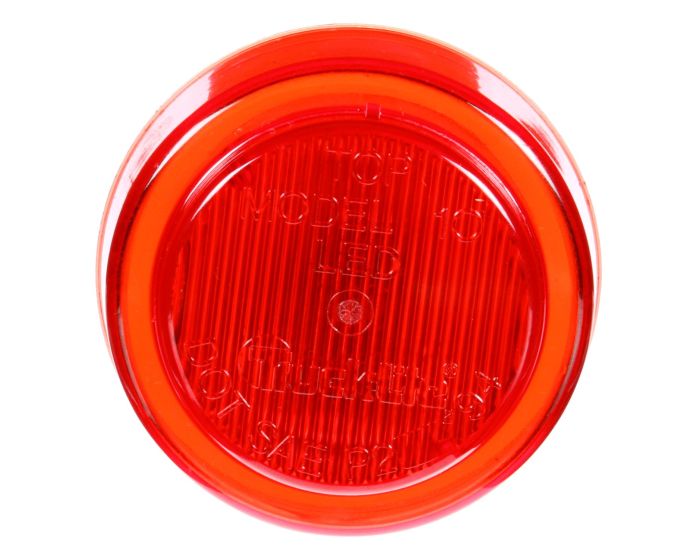

10 Series, LED, Red Round, 2 Diode, Marker Clearance Light, P2, Black Polycarbonate Grommet Mount, Fit 'N Forget M/C, Female PL-10, 12V, Kit, Bulk

10050R3

|Less current draw, resulting in increased battery and alternator life while allowing more power for other vehicle requirements|Electronics completely sealed in epoxy to resist corrosion and moisture
  • PL-10
  • Fit 'N Forget M/C
  • Kit
  • Bulk
  • 12 V
Need To Order By Phone?

(800) - 562 - 5012

Product Name 10 Series, LED, Red Round, 2 Diode, Marker Clearance Light, P2, Black Polycarbonate Grommet Mount, Fit 'N Forget M/C, Female PL-10, 12V, Kit, Bulk
New No
Best Sellers No
Show Size Chart No
Brand TL
Category Marker Clearance Light
Series 10 Series
Warranty Lifetime
Common Root 10050R
Country of Origin ZZ
Diamond Shell (Yes/No) No
Features & Benefits |Less current draw, resulting in increased battery and alternator life while allowing more power for other vehicle requirements|Electronics completely sealed in epoxy to resist corrosion and moisture
Feature Highlights PL-10|Fit 'N Forget M/C|Kit|Bulk|12 V
Housing Material Polycarbonate
Itm Id 2039873
KIT (Yes/No) Yes
Lens Shape Round
Lighting Technology LED
Lamp Connection Fit 'N Forget M/C
Lens Color Red
Lens Height_INH 2.54
Lens Material Polycarbonate
Lens Width_INH 2.54
Mount/Trim Color Black
Mount/Trim Material Polycarbonate
Mount Type Grommet Kit
NAPA Part Number 10050R3
Number of Diodes/Bulbs 2
Number of Wires 2
Packaging Type Bulk
Part Number 10050R3
Plug Side One (Simplified) Fit 'N Forget M/C
Plug Side One Fit 'N Forget M/C
Plug Side Two Female PL-10
Reflectorized (Yes/No) No
Sealed/Bulb Replaceable Sealed
Standards Met P2|PC
Std Carton Qty 50
Taxonomy Lights.Marker & Clearance Lights
Total Depth_MMT 35.56
Total Depth 1.4
Temp. Description LED Mdl 10 M/C Grommet Kit, Bu
Total Height_MMT 88.9
Total Height 3.5
Total Length .03
Total Width_MMT 88.9
Total Width 3.5
UNSPSC/Tariff 25172900
UPC 0735111080596
VMRS 034-004-253
Voltage (VLT) 12
Weight 10
WARNING: This product can expose you to chemicals including lead and lead compounds, DEHP and bisphenol A (BPA) which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Replacement Parts / Kit Components
