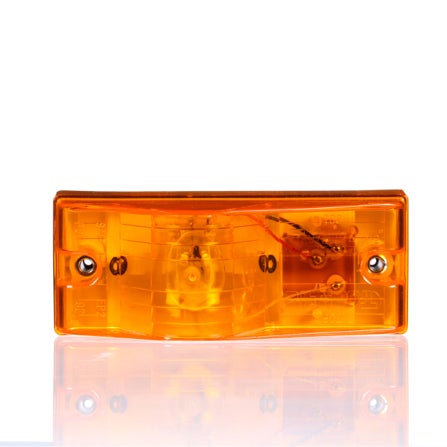

22 Series, w/Gasket, Incandescent, Yellow Rectangular, 1 Bulb, Side Turn Signal, 2 Screw, PL-3, 12V

22006Y

Features dual contact marker/clearance and side turn or auxiliary turn functions|Mounts on surface of vehicle or with "L" bracket|Red lamp should be used for rear vehicle applications|Yellow version exceeds SAEJ2039 side turn and marker standards
Need To Order By Phone?

(800) - 562 - 5012

Product Name 22 Series, w/Gasket, Incandescent, Yellow Rectangular, 1 Bulb, Side Turn Signal, 2 Screw, PL-3, 12V
ViewPoint (Y/N) No
New No
Sale No
Best Sellers No
Show Size Chart No
Brand TL
Business Unit Truck-Lite (NA)
Category Turn Signal
Series 22 Series
Warranty 1-Year
Compliance Family FMVSS 108|CMVSS 108|DOT|SAE
Common Root 22006Y
Common Size 2"x6"
Country of Origin ZZ
Current Minor 0.49
Features & Benefits Features dual contact marker/clearance and side turn or auxiliary turn functions|Mounts on surface of vehicle or with "L" bracket|Red lamp should be used for rear vehicle applications|Yellow version exceeds SAEJ2039 side turn and marker standards
Housing Material Polycarbonate
Itm Id 2073238
KIT (Yes/No) No
Lens Shape Rectangular
Lighting Technology Incandescent
Lamp Connection PL-3
Lamp Connection (Simplified) PL-3
Lens Color Yellow
Lens Height_INH 2.4
Lens Material Polycarbonate
Lens Width_INH 5.94
Mount Type 2 Screw
NAPA Part Number 22006Y
Number of Diodes/Bulbs 1
Packaging Type Standard
Part Number 22006Y4
Plug Side One No Plug
Plug Side Two No Plug
Position Side
Reflectorized (Yes/No) No
Sealed/Bulb Replaceable Sealed
Standards Met P2|E
Std Carton Qty 1
Taxonomy Lights.Turn Signal Lights
Total Depth_MMT 61.21
Total Depth 2.41
Temp. Description Mdl 22 Side Turn Lamp and Gask
Total Height_MMT 60.96
Total Height 2.4
Total Length 2.1
Total Width_MMT 150.88
Total Width 5.94
UNSPSC/Tariff 25172900
UPC 7.35111E+11
VMRS 034-003-081
Voltage (VLT) 12
Weight 0.42
