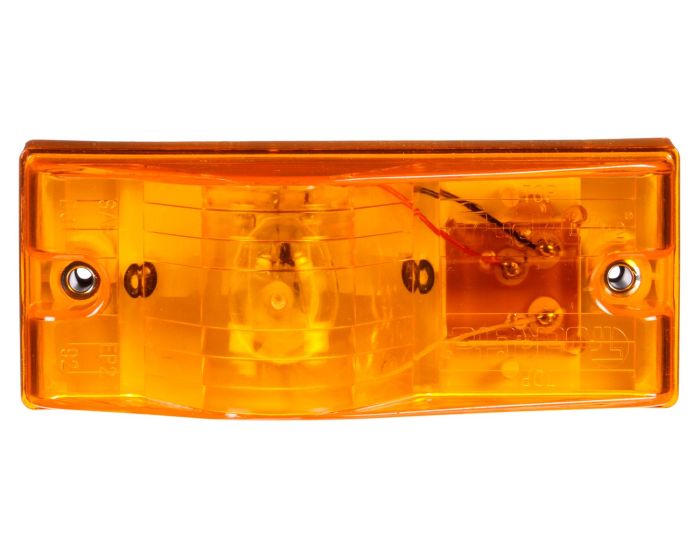

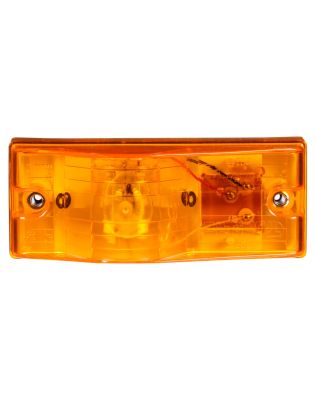

22 Series, w/Gasket, Incandescent, Yellow Rectangular, 1 Bulb, Side Turn Signal, 2 Screw, PL-3, 12V, Bulk

22006Y3

Features dual contact marker/clearance and side turn or auxiliary turn functions|Mounts on surface of vehicle or with "L" bracket|Red lamp should be used for rear vehicle applications|Yellow version exceeds SAEJ2039 side turn and marker standards
Brand TL
Business Unit Truck-Lite (NA)
Category Turn Signal
Common Root 22006Y
Common Size 2"x6"
Compliance Family FMVSS 108|CMVSS 108|DOT|SAE
Country of Origin ZZ
Current Minor 0.49
Features & Benefits Features dual contact marker/clearance and side turn or auxiliary turn functions|Mounts on surface of vehicle or with "L" bracket|Red lamp should be used for rear vehicle applications|Yellow version exceeds SAEJ2039 side turn and marker standards
Housing Material Polycarbonate
Itm Id 2073220
KIT (Yes/No) No
Lamp Connection PL-3
Lamp Connection (Simplified) PL-3
Lens Color Yellow
Lens Height (INH) 2.4
Lens Material Polycarbonate
Lens Shape Rectangular
Lens Width (INH) 5.94
Lighting Technology Incandescent
Mount Type 2 Screw
NAPA Part Number 22006Y3
Number of Diodes/Bulbs 1
Packaging Type Bulk
Part Number 22006Y3
Plug Side One No Plug
Plug Side Two No Plug
Position Side
Reflectorized (Yes/No) No
Sealed/Bulb Replaceable Sealed
Series 22 Series
Standards Met P2|E
Std Carton Qty 50
Taxonomy Lights.Turn Signal Lights
Temp. Description Mdl 22 Side Turn Lamp and Gask
Total Depth 2.41
Total Depth (MMT) 61.21
Total Height 2.4
Total Height (MMT) 60.96
Total Length 2.1
Total Width 5.94
Total Width (MMT) 150.88
UNSPSC/Tariff 25172900
UPC 735111048299
VMRS 034-003-081
Voltage (VLT) 12
Warranty 1-Year
Weight 20
