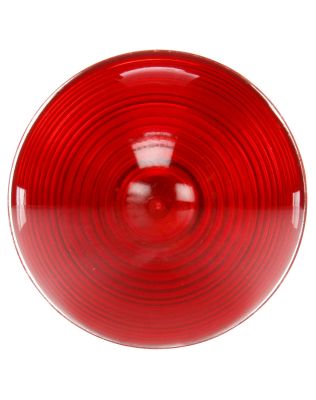

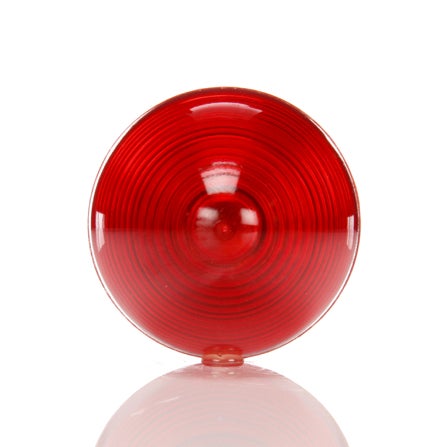

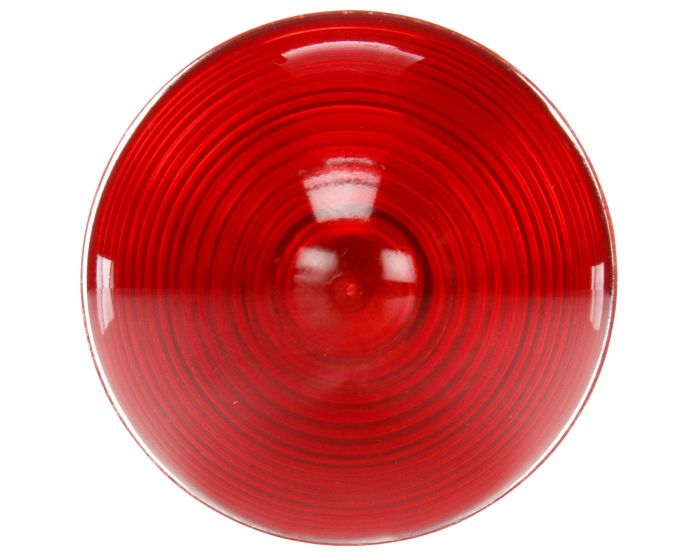

30 Series, Incandescent, Red Beehive, 1 Bulb, Marker Clearance Light, PC, PL-10, 12V
30201R
Features a beehive lens designed for cab marker use|Lens and housing are sonically sealed|High-impact polycarbonate construction|12V, 15,000-hour-rated bulb|Suitable for PC requirements on a 45-degree angle|Replaces Signal-Stat 1018 series|Upgrade to LED products, use Truck-Lite #30276R/Y or Signal-Stat 3075/3075A
- No Plug
- PL-10
- 12 V
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | 30 Series, Incandescent, Red Beehive, 1 Bulb, Marker Clearance Light, PC, PL-10, 12V |
|---|---|
| Brand | TL |
| Category | Marker Clearance Light |
| Series | 30 Series |
| Warranty | 1-Year |
| Common Root | 30201R |
| Country of Origin | ZZ |
| Diamond Shell (Yes/No) | No |
| Features & Benefits | Features a beehive lens designed for cab marker use|Lens and housing are sonically sealed|High-impact polycarbonate construction|12V, 15,000-hour-rated bulb|Suitable for PC requirements on a 45-degree angle|Replaces Signal-Stat 1018 series|Upgrade to LED products, use Truck-Lite #30276R/Y or Signal-Stat 3075/3075A |
| Feature Highlights | No Plug|PL-10|12 V |
| Housing Material | Polycarbonate |
| Itm Id | 2106394 |
| KIT (Yes/No) | No |
| Lens Shape | Beehive |
| Lighting Technology | Incandescent |
| Lamp Connection | PL-10 |
| Lens Color | Red |
| Lens Height_INH | 2.01 |
| Lens Material | Polycarbonate |
| Lens Width_INH | 2.01 |
| Mount Type | Grommet Mount |
| NAPA Part Number | 30201R |
| Number of Diodes/Bulbs | 1 |
| Packaging Type | Standard |
| Part Number | 30201R4 |
| Plug Side One | No Plug |
| Plug Side Two | No Plug |
| Reflectorized (Yes/No) | No |
| Sealed/Bulb Replaceable | Sealed |
| Standards Met | P2|PC |
| Std Carton Qty | 1 |
| Taxonomy | Lights.Marker & Clearance Lights |
| Total Depth_MMT | 44.2 |
| Total Depth | 1.74 |
| Temp. Description | Mdl 30 M/C Beehive Lamp |
| Total Height_MMT | 51.05 |
| Total Height | 2.01 |
| Total Length | .33 |
| Total Width_MMT | 51.05 |
| Total Width | 2.01 |
| UNSPSC/Tariff | 25172900 |
| UPC | 0735111045014 |
| VMRS | 034-004-024 |
| Voltage (VLT) | 12 |
| Weight | .09 |
