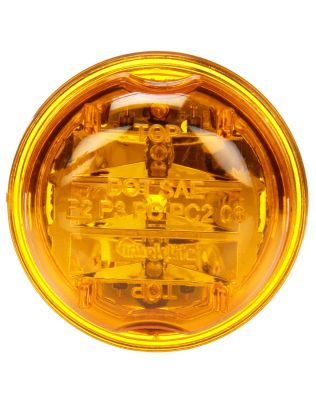

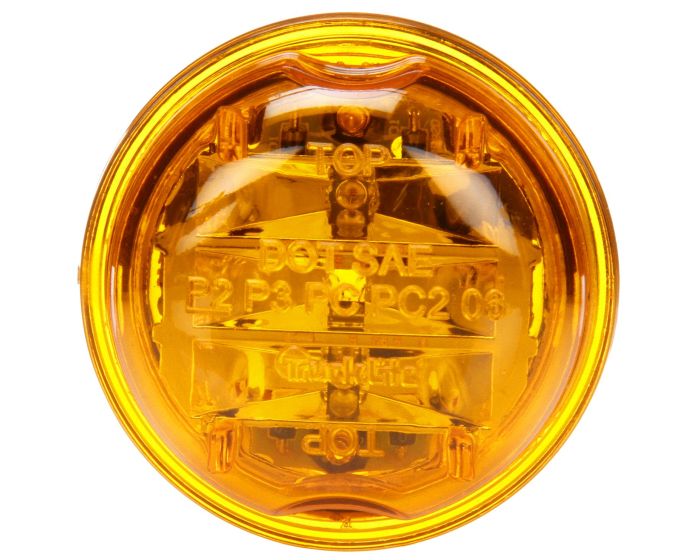

30 Series, High Profile, LED, Yellow Round, 8 Diode, Marker Clearance Light, PC, PL-10, 12V, Bulk
30275Y3
|Most advanced and cost effective 2'' clearance and marker lamp|LEDs have no filament, therefore are not susceptible to shock and vibration|Less current draw, resulting in increased battery and alternator life while allowing more power for other vehicle requirements|SAE PC-rated for combination clearance/marker applications
- No Plug
- PL-10
- Bulk
- 12 V
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | 30 Series, High Profile, LED, Yellow Round, 8 Diode, Marker Clearance Light, PC, PL-10, 12V, Bulk |
|---|---|
| Brand | TL |
| Category | Marker Clearance Light |
| Series | 30 Series |
| Warranty | 3-Year |
| Common Root | 30275Y |
| Country of Origin | ZZ |
| Diamond Shell (Yes/No) | No |
| Features & Benefits | |Most advanced and cost effective 2'' clearance and marker lamp|LEDs have no filament, therefore are not susceptible to shock and vibration|Less current draw, resulting in increased battery and alternator life while allowing more power for other vehicle requirements|SAE PC-rated for combination clearance/marker applications |
| Feature Highlights | No Plug|PL-10|Bulk|12 V |
| Housing Material | Polycarbonate |
| Itm Id | 2108496 |
| KIT (Yes/No) | No |
| Lens Shape | Round |
| Lighting Technology | LED |
| Lamp Connection | PL-10 |
| Lens Color | Yellow |
| Lens Height_INH | 2.24 |
| Lens Material | Polycarbonate |
| Lens Width_INH | 2.24 |
| Mount Type | Grommet Mount |
| NAPA Part Number | 30275Y3 |
| Number of Diodes/Bulbs | 8 |
| Packaging Type | Bulk |
| Part Number | 30275Y3 |
| Plug Side One | No Plug |
| Plug Side Two | No Plug |
| Reflectorized (Yes/No) | No |
| Sealed/Bulb Replaceable | Sealed |
| Standards Met | P2|P3|PC |
| Std Carton Qty | 50 |
| Taxonomy | Lights.Marker & Clearance Lights |
| Total Depth_MMT | 38.1 |
| Total Depth | 1.5 |
| Temp. Description | LED Mdl 30 High Profile Lamp, |
| Total Height_MMT | 56.9 |
| Total Height | 2.24 |
| Total Length | .1 |
| Total Width_MMT | 56.9 |
| Total Width | 2.24 |
| UNSPSC/Tariff | 25172900 |
| UPC | 0735111097495 |
| VMRS | 034-004-253 |
| Voltage (VLT) | 12 |
| Weight | 5.45 |
