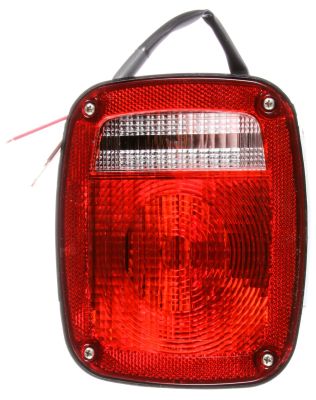

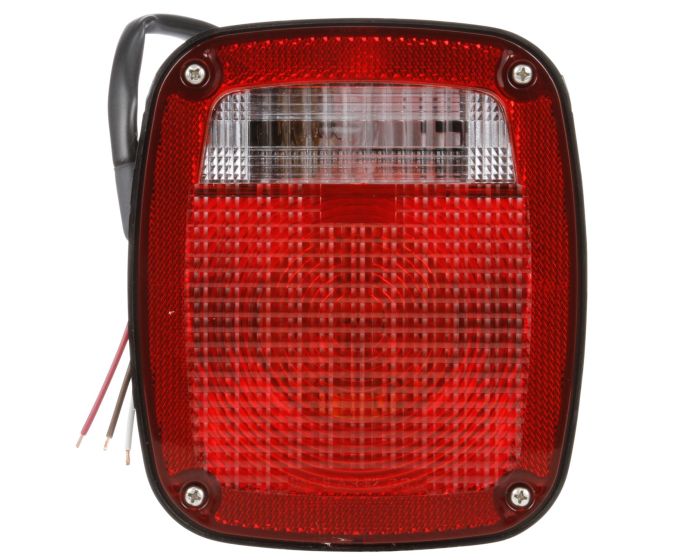

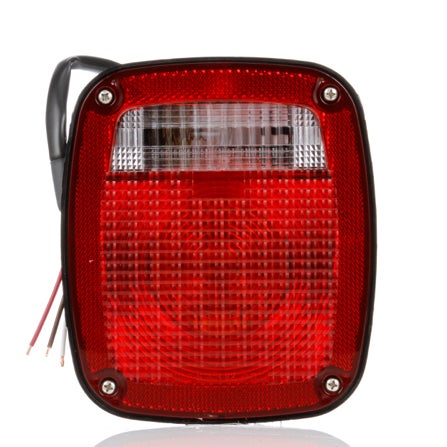

Signal-Stat, Incandescent, Red/Clear Acrylic Lens, Universal, Combo Box Light, 3 Stud , Hardwired, Stripped End, 12V, Display
4027D
Combination stop/turn/tail, back-up and reflex reflector|Three bolt on 2" triangle|Upgrade to LED Truck-Lite LED Products using #5070-#5073
- Stripped End
- Hardwired
- Display
- 12 V
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | Signal-Stat, Incandescent, Red/Clear Acrylic Lens, Universal, Combo Box Light, 3 Stud , Hardwired, Stripped End, 12V, Display |
|---|---|
| SKU | 4027D |
| Brand | Signal-Stat |
| Category | Combination Box Lights |
| Series | Signal-Stat |
| Warranty | 1-Year |
| Common Root | 4027 |
| Country of Origin | US |
| Current Major | 2.1 |
| Current Minor | 0.59 |
| Features & Benefits | Combination stop/turn/tail, back-up and reflex reflector|Three bolt on 2" triangle|Upgrade to LED Truck-Lite LED Products using #5070-#5073 |
| Feature Highlights | Stripped End|Hardwired|Display|12 V |
| Housing Color | Black |
| Housing Material | Polycarbonate |
| Itm Id | 1973955 |
| KIT (Yes/No) | No |
| Lens Shape | Rectangular |
| License Lamp (Yes/No) | No |
| Lighting Technology | Incandescent |
| Lamp Connection | Hardwired |
| Lens Color | Red|Clear |
| Lens Height_INH | 6.75 |
| Lens Material | Acrylic |
| Mount Type | 3 Stud Mount |
| NAPA Part Number | 4027 |
| Number of Diodes/Bulbs | 2 |
| Number of Wires | 3 |
| Packaging Type | Display |
| Part Number | SS4027-D-S |
| Plug Side One | Hardwired |
| Plug Side Two | Stripped End |
| Position | Universal |
| Sealed/Bulb Replaceable | Bulb Replaceable |
| Standards Met | S2|I6|R|A|L|T |
| Std Carton Qty | 1 |
| Taxonomy | Lights.Combination Box Lights |
| Total Depth_MMT | 69.85 |
| Total Depth | 2.75 |
| Temp. Description | Multi-Function Universal Three |
| Total Height_MMT | 171.45 |
| Total Height | 6.75 |
| Total Width_MMT | 146.05 |
| Total Width | 5.75 |
| UNSPSC/Tariff | 25172900 |
| UPC | 614046109865 |
| VMRS | 034-002-022 |
| Voltage (VLT) | 12 |
| Weight | 1.2 |
